SPECpower_ssj2008

Fujitsu FUJITSU Server PRIMERGY RX4770 M6			SPECpower_ssj2008 = 11,077 overall ssj_ops/watt
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	Oct 7, 2020
Hardware Availability:	Nov-2020	Software Availability:	Jul-2020	Publication:	Nov 4, 2020
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

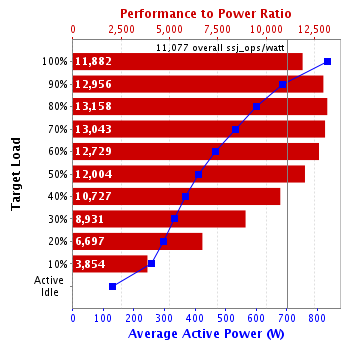

Benchmark Results Summary

Performance			Power	Performance to Power Ratio
Target Load	Actual Load	ssj_ops	Average Active Power (W)	Performance to Power Ratio
100%	99.9%	9,904,110	834	11,882
90%	89.9%	8,914,839	688	12,956
80%	80.0%	7,933,444	603	13,158
70%	70.0%	6,944,695	532	13,043
60%	60.0%	5,948,299	467	12,729
50%	50.0%	4,956,147	413	12,004
40%	40.0%	3,966,282	370	10,727
30%	30.0%	2,973,866	333	8,931
20%	20.0%	1,980,442	296	6,697
10%	10.0%	990,995	257	3,854
Active Idle		0	129	0
∑ssj_ops / ∑power =				11,077

System Under Test

Set: 'RX4770M6'

Set Identifier:	RX4770M6
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Single Node

Hardware
Hardware Vendor:	Fujitsu
Model:	FUJITSU Server PRIMERGY RX4770 M6
Form Factor:	3U
CPU Name:	Intel Xeon Platinum 8380H
CPU Characteristics:	28-Core, 2.90GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2900
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16 GB 2Rx8 PC4-3200Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R, 1S, 1T, 1U, 1V, 1W, 1X, 1Y, 1Z populated
Power Supply Quantity and Rating (W):	2 x 900
Power Supply Details:	S26113-E629-V50-1
Disk Drive:	1 x SSD M.2 240GB, S26361-F5787-E240
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x PLAN CP I350-T4 4X 1000BASE-T OCPv3, PYBLA274U
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP2
OS Version:	5.3.18-19-default
Filesystem:	btrfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode), version 11.0.8
JVM Command-line Options:	-server -Xmn23000m -Xms25000m -Xmx25000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:ParallelGCThreads=14 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:AllocatePrefetchInstr=0 -XX:MinJumpTableSize=18 -XX:UseAVX=0 -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity:	chrt -r 1 taskset -c [(0,1,2,3,7,8,9,14,15,16,17,21,22,23,112,113,114,115,119,120,121,126,127,128,129,133,134),(4,5,6,10,11,12,13,18,19,20,24,25,26,27,116,117,118,122,123,124,125,130,131,132,136,137,138,139),(28,29,30,31,35,36,37,42,43,44,45,49,50,51,140,141,142,143,147,148,149,154,155,156,157,161,162,163),(32,33,34,38,39,40,41,46,47,48,52,53,54,55,144,145,146,150,151,152,153,158,159,160,164,165,166,167),(56,57,58,59,63,64,65,70,71,72,73,77,78,79,168,169,170,171,175,176,177,182,183,184,185,189,190,191),(60,61,62,66,67,68,69,74,75,76,80,81,82,83,172,173,174,178,179,180,181,186,187,188,192,193,194,195),(84,85,86,87,91,92,93,98,99,100,101,105,106,107,196,197,198,199,203,204,205,210,211,212,213,217,218,219),(88,89,90,94,95,96,97,102,103,104,108,109,110,111,200,201,202,206,207,208,209,214,215,216,220,221,222,223)] numactl --membind=[0-7]
JVM Instances:	8
JVM Initial Heap (MB):	25000
JVM Maximum Heap (MB):	25000
JVM Address Bits:	64
Boot Firmware Version:	R1.1.1
Management Firmware Version:	3.00P
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Set "ASPM Support = L1 only" in BIOS.
Set "Hardware Prefetcher = Disabled" in BIOS.
Set "Adjacent Cache Line Prefetch = Disabled" in BIOS.
Set "DCU Streamer Prefetcher = Disabled" in BIOS.
Set "Intel Virtualization Technology = Disabled" in BIOS.
Set "Turbo Mode = Disabled" in BIOS.
Set "Energy Performance = Energy Efficient" in BIOS.
Set "Override OS Energy Performance = Enabled" in BIOS.
Set "HWPM Support = Disabled" in BIOS.
Set "Package C State limit = No limit" in BIOS.
Set "UPI Link Frequency Select = 9.6GT/s" in BIOS.
Set "Local x2APIC = Disabled" in BIOS.
Set "Uncore Frequency Override = Power balanced" in BIOS.
Set "DDR Performance = Power balanced" in BIOS.(effective memory frequency = 2400 MHz)
Set "SNC(Sub NUMA) = Enabled" in BIOS.
Set "SATA Controller = Disabled" in BIOS.
Set "USB Port Control = Disable all ports" in BIOS.
Set "Serial Port = Disabled" in BIOS.
Set "Network Stack = Disabled" in BIOS.

Management Firmware Settings

None

System Under Test Notes

kernel parameter: pcie_aspm=force pcie_aspm.policy=powersave intel_pstate=disable
Benchmark started via ssh
modprobe cpufreq_conservative
cpupower frequency-set -g conservative
echo 1000000 > /sys/devices/system/cpu/cpufreq/conservative/sampling_rate
echo 94 > /sys/devices/system/cpu/cpufreq/conservative/up_threshold
echo 0 > /sys/devices/system/cpu/cpufreq/conservative/ignore_nice_load
echo 1 > /sys/devices/system/cpu/cpufreq/conservative/sampling_down_factor
echo 1 > /sys/devices/system/cpu/cpufreq/conservative/freq_step
echo 93 > /sys/devices/system/cpu/cpufreq/conservative/down_threshold
echo always > /sys/kernel/mm/transparent_hugepage/enabled
sysctl -w kernel.sched_migration_cost_ns=6000
sysctl -w kernel.sched_min_granularity_ns=10000000
sysctl -w kernel.nmi_watchdog=0
sysctl -w vm.swappiness=50
sysctl -w vm.laptop_mode=5
powertop --auto-tune
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Controller System

Hardware
Hardware Vendor:	Fujitsu
Model:	PRIMERGY RX2530 M2
CPU Description:	2x Intel Xeon E5-2643 v4
Memory amount (GB):	64

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 Standard
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 25.261-b12, mixed mode), version 1.8.0_261
CCS Version:	1.2.6

Measurement Devices

Power Analyzer pwr1
Hardware Vendor:	Hioki
Model:	Hioki3336
Serial Number:	170130930
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NICT (National Institute of Information and Communications Technology)
Accredited by:	HIOKI E.E. CORPORATION
Calibration Label:	H06400086-2002
Date of Calibration:	12-Feb-2020
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.1-a2d19f26-20190717
Setup Description:	Connected to PSU 1 and PSU 2

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	Watchport Virtual Port 5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	5 mm in front of SUT main air intake

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 224.

Aggregate Electrical and Environmental Data

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	834	28.1
90%	688	27.6
80%	603	27.0
70%	532	26.3
60%	467	25.9
50%	413	25.2
40%	370	24.9
30%	333	24.6
20%	296	24.2
10%	257	24.1
Active Idle	129	23.8

Line Standard	Minimum Temperature (°C)	Elevation (m)
200V / 50 Hz / 1 phase / 2 wires	23.8	11

See the Power/Temperature Details Report for additional details.

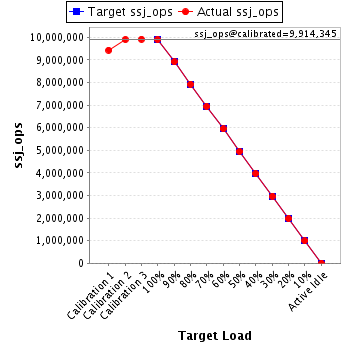

Aggregate Performance Data

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			9,436,394
Calibration 2			9,906,474
Calibration 3			9,922,216
ssj_ops@calibrated=9,914,345
100%	99.9%	9,914,345	9,904,110
90%	89.9%	8,922,911	8,914,839
80%	80.0%	7,931,476	7,933,444
70%	70.0%	6,940,042	6,944,695
60%	60.0%	5,948,607	5,948,299
50%	50.0%	4,957,173	4,956,147
40%	40.0%	3,965,738	3,966,282
30%	30.0%	2,974,304	2,973,866
20%	20.0%	1,982,869	1,980,442
10%	10.0%	991,435	990,995
Active Idle		0	0

See the Host Performance Report for additional details.
