Hewlett Packard Enterprise Superdome Flex 280 - 8 Socket SPECpower_ssj2008 = 7,628 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 16, 2020
Hardware Availability: Dec-2020 Software Availability: Feb-2020 Publication: Nov 4, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 20,132,703 2,148 9,375
90% 90.0% 18,206,340 1,955 9,313
80% 80.0% 16,180,488 1,748 9,255
70% 70.0% 14,159,704 1,553 9,115
60% 60.0% 12,140,581 1,402 8,660
50% 50.1% 10,124,723 1,276 7,933
40% 40.0% 8,095,751 1,163 6,962
30% 30.0% 6,059,651 1,054 5,748
20% 20.0% 4,048,011 945 4,285
10% 10.0% 2,024,091 831 2,436
Active Idle 0 500 0
∑ssj_ops / ∑power = 7,628
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Superdome Flex 280 - 8 Socket
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8380HL 2.90 GHz
CPU Characteristics: 28-Core, 2.90 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2900
CPU(s) Enabled: 224 cores, 8 chips, 28 cores/chip
Hardware Threads: 448 (2 / core)
CPU(s) Orderable: 2,4,8 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 1536
# and size of DIMM: 48 x 32768 MB
Memory Details: 32GB 2Rx4 PC4-3200AA-RE2; 1 DIMM per channel slots populated
Power Supply Quantity and Rating (W): 4 x 1600
Power Supply Details: HPE 1600W Platinum Power Supply (060-0415-002)
Disk Drive: 1 x HPE Superdome Flex 280 480GB SATA 6G Mixed Use SFF (2.5in) BC 3yr Wty Digitally Signed Firmware SSD (R6A34A)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Embedded Ethernet 1Gb 2-port adapter
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1677m -Xms2000m -Xmx2000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /node [0-4] /affinity [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000, 0x30000000, 0xC0000000, 0x300000000, 0xC00000000, 0x3000000000, 0xC000000000, 0x30000000000, 0xC0000000000, 0x300000000000, 0xC00000000000, 0x3000000000000, 0xC000000000000, 0x30000000000000, 0xC0000000000000
JVM Instances: 224
JVM Initial Heap (MB): 2000
JVM Maximum Heap (MB): 2000
JVM Address Bits: 64
Boot Firmware Version: 1.0.140
Management Firmware Version: 1.0.140
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4532691
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Microsoft Windows Server 2012 R2
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_191-b12 (build 25.191-b12, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB45372
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-FQ7PK-60-1
Date of Calibration: 12-Jun-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: SUT Power Supplies 1, 2, and 3
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: C2SF14002V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-FQ7PK-40-1
Date of Calibration: 16-Jun-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: SUT Power Supplies 4, 5, and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 2,148 22.1
90% 1,955 22.1
80% 1,748 21.9
70% 1,553 21.9
60% 1,402 22.1
50% 1,276 22.1
40% 1,163 22.1
30% 1,054 22.1
20% 945 22.1
10% 831 22.1
Active Idle 500 22.1
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 21.9 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     20,120,783
Calibration 2     20,199,166
Calibration 3     20,247,624
ssj_ops@calibrated=20,223,395
100% 99.6% 20,223,395 20,132,703
90% 90.0% 18,201,056 18,206,340
80% 80.0% 16,178,716 16,180,488
70% 70.0% 14,156,377 14,159,704
60% 60.0% 12,134,037 12,140,581
50% 50.1% 10,111,698 10,124,723
40% 40.0% 8,089,358 8,095,751
30% 30.0% 6,067,019 6,059,651
20% 20.0% 4,044,679 4,048,011
10% 10.0% 2,022,340 2,024,091
Active Idle   0 0

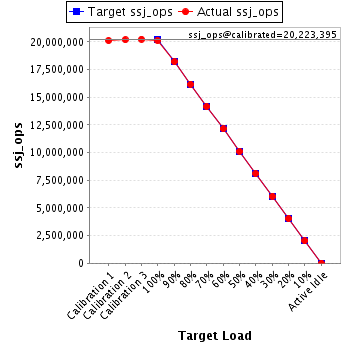

Graph of results
See the Host Performance Report for additional details.
