New H3C Technologies Co., Ltd. H3C UniServer R6900 G5 SPECpower_ssj2008 = 11,159 overall ssj_ops/watt
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Nov 3, 2020
Hardware Availability: Aug-2020 Software Availability: Sep-2020 Publication: Dec 2, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 10,793,473 1,005 10,736
90% 90.7% 9,829,074 849 11,576
80% 80.0% 8,661,026 696 12,452
70% 70.0% 7,586,971 571 13,295
60% 60.0% 6,494,429 493 13,186
50% 50.0% 5,415,001 425 12,743
40% 40.0% 4,337,529 371 11,703
30% 30.1% 3,256,404 328 9,914
20% 20.0% 2,167,324 284 7,634
10% 10.0% 1,085,551 233 4,658
Active Idle 0 89.2 0
∑ssj_ops / ∑power = 11,159
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer R6900 G5
Form Factor: 4U
CPU Name: Intel Xeon Platinum 8380HL 2.9GHz
CPU Characteristics: 2.9 GHz, 28 core, 38.5MB L3 cache
CPU Frequency (MHz): 2900
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per chip
Tertiary Cache: 39424 KB I+D off chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16 GB
Memory Details: 16 GB 2Rx8 SAMSUNG registered ECC 3200MHz; slots 1, 3, 5, 8, 10, 12 populated in each Socket
Power Supply Quantity and Rating (W): 2 x 850
Power Supply Details: DELTA PSR850-12A
Disk Drive: Intel SSD S4510 480GB SATA 6Gb/s
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x H3C 4-Port 1GE OCP3.0 Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode Enabled In OS (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809(OS Build 17763.1)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-bit Server VM 18.9(build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: set JAVAOPTIONS_SSJ=-server -Xmn23000m -Xms25000m -Xmx25000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:-TheadLocalHandshakes
JVM Affinity: start /node [0,1,2,3,4,5,6,7] /affinity [0xFFFFFFF]
JVM Instances: 8
JVM Initial Heap (MB): 25000
JVM Maximum Heap (MB): 25000
JVM Address Bits: 64
Boot Firmware Version: 5.05.00
Management Firmware Version: 2.08.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4072698
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer R6900 G5
CPU Description: Intel Xeon Platinum 8380HL 2.9GHz
Memory amount (GB): 384
Software
Operating System (OS): Microsoft Windows Server 2019 Datacenter
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-bit Server VM 18.9(build 11.0.8+10-LTS, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: CHROMA
Model: 66203
Serial Number: 662030000248
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: CEPREI Calibration and Testing Center
Calibration Label: 1JA20002540-0002
Date of Calibration: 28-May-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: Connected to PSU 1 and PSU 2
Temperature Sensor temp1
Hardware Vendor: DIGI.
Model: Watchport/H
Driver Version: 6.2.1.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Placed in front the main airflow inlet of the SUT less than 50mm
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 1,005 22.2
90% 849 22.2
80% 696 22.1
70% 571 22.1
60% 493 22.1
50% 425 22.1
40% 371 22.2
30% 328 22.1
20% 284 22.1
10% 233 22.1
Active Idle 89.2 22.1
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 22.1 132

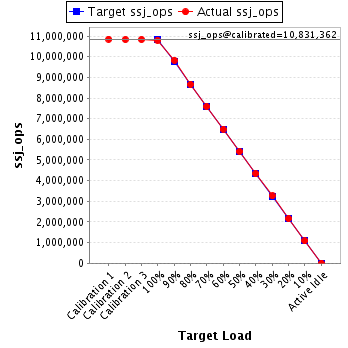

Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,848,470
Calibration 2     10,831,025
Calibration 3     10,831,699
ssj_ops@calibrated=10,831,362
100% 99.7% 10,831,362 10,793,473
90% 90.7% 9,748,226 9,829,074
80% 80.0% 8,665,090 8,661,026
70% 70.0% 7,581,953 7,586,971
60% 60.0% 6,498,817 6,494,429
50% 50.0% 5,415,681 5,415,001
40% 40.0% 4,332,545 4,337,529
30% 30.1% 3,249,409 3,256,404
20% 20.0% 2,166,272 2,167,324
10% 10.0% 1,083,136 1,085,551
Active Idle   0 0
Graph of results
