SPECpower_ssj2008

Hewlett Packard Enterprise ProLiant DL110 Gen10 Plus			SPECpower_ssj2008 = 9,581 overall ssj_ops/watt
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Single Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Jul 12, 2021
Hardware Availability:	Aug-2021	Software Availability:	Jun-2021	Publication:	Aug 31, 2021
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant DL110 Gen10 Plus
Form Factor:	1U
CPU Name:	Intel Xeon Gold 6314U CPU @ 2.30GHz (Intel Turbo Boost Technology up to 3.4GHz)
CPU Characteristics:	32-Core, 2.30 GHz, 48MB L3 Cache
CPU Frequency (MHz):	2300
CPU(s) Enabled:	32 cores, 1 chip, 32 cores/chip
Hardware Threads:	64 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1280 MB I+D on chip per core
Tertiary Cache:	48 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	64
# and size of DIMM:	8 x 8192 MB
Memory Details:	8 x 8GB 1Rx8 PC4-3200-AA-RD1-12; slots 1,2,3,4,5,6,7,8 populated in each socket
Power Supply Quantity and Rating (W):	1 x 700
Power Supply Details:	HPE 700W Flex Slot Platinum Hot Plug Low Halogen AC Power Supply Kit (P44975-B21)
Disk Drive:	1 x HPE 240GB SATA 6G M.2 5300 SSD (P19888-B21)
Disk Controller:	None
# and type of Network Interface Cards (NICs) Installed:	1 x Ethernet 10/25Gb 2-port SFP28 MCX562A-ACAI OCP3 Adapter
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2019 Datacenter
OS Version:	Version 1809 (Build 17763.1132)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn1475m -Xms1675m -Xmx1675m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	start /NODE [0,1] /AFFINITY[3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C00000000]
JVM Instances:	32
JVM Initial Heap (MB):	1675
JVM Maximum Heap (MB):	1675
JVM Address Bits:	64
Boot Firmware Version:	U56 v1.40 (04/28/2021)
Management Firmware Version:	1.40 Apr 28 2021
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) Version:2021.06.21, KB4554354

See SUT Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 64 to detect the full number of available processors on the SUT
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Windows Power Options= Power Saver
Turn Off Dispay = 1 Minute
Turn off Hard Disk = 1 Minute
Minimum Processor State=0%
Maximum Processor State=100%
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 100
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current
Applied protection against speculative execution
- Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
- Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
- Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains Intel microcode version 00000000A002000D for the Intel Xeon Gold 6314U processor

Software
Operating System (OS):	Windows Server 2012 R2 - V6.3 9600
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa
Model:	WT210
Serial Number:	91K218965
Connectivity:	GPIB vi NI GPIB-USB-HS
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	TRANSCAT
Calibration Label:	5-FU771-60-1
Date of Calibration:	23-Aug-2020
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.2-3976349f-20201208
Setup Description:	Connected to SUT Power Supply 1

None

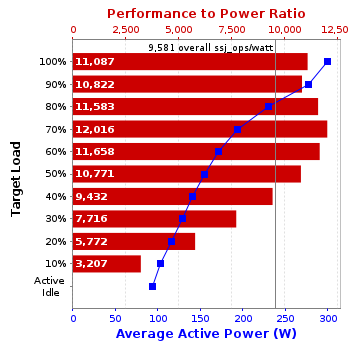

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	299	20.5
90%	277	20.4
80%	230	20.5
70%	193	20.6
60%	171	20.6
50%	154	20.8
40%	141	20.7
30%	129	20.6
20%	116	20.6
10%	103	20.6
Active Idle	94.1	20.5

Line Standard	Minimum Temperature (°C)	Elevation (m)
210V / 60 Hz / 1 phase / 2 wires	20.4	132

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
