Hewlett Packard Enterprise ProLiant ML30 Gen10 Plus | SPECpower_ssj2008 = 9,800 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Feb 2, 2022 |
Hardware Availability: | Mar-2022 | Software Availability: | Aug-2021 | Publication: | Mar 24, 2022 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

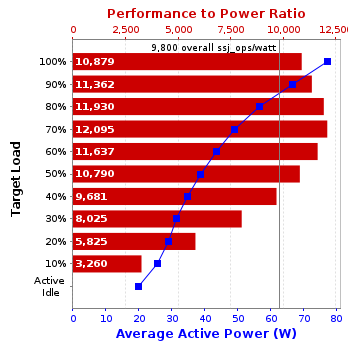

Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 99.9% | 839,939 | 77.2 | 10,879 |
90% | 90.1% | 758,192 | 66.7 | 11,362 |
80% | 80.1% | 674,167 | 56.5 | 11,930 |
70% | 70.4% | 592,057 | 48.9 | 12,095 |
60% | 60.1% | 505,879 | 43.5 | 11,637 |
50% | 49.7% | 418,105 | 38.7 | 10,790 |
40% | 40.0% | 336,352 | 34.7 | 9,681 |
30% | 30.1% | 253,165 | 31.5 | 8,025 |
20% | 20.0% | 168,494 | 28.9 | 5,825 |
10% | 10.0% | 83,729 | 25.7 | 3,260 |
Active Idle | 0 | 20.0 | 0 | |
∑ssj_ops / ∑power = | 9,800 |
Set Identifier: | SUT |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | Hewlett Packard Enterprise |
Model: | ProLiant ML30 Gen10 Plus |
Form Factor: | Tower |
CPU Name: | Intel(R) Xeon(R) E-2388G CPU 3.20GHz |
CPU Characteristics: | 8-Core, 3.20 GHz, 16MB L3 Cache |
CPU Frequency (MHz): | 3200 |
CPU(s) Enabled: | 8 cores, 1 chip, 8 cores/chip |
Hardware Threads: | 16 (2 / core) |
CPU(s) Orderable: | 1 chip |
Primary Cache: | 32 KB I + 48 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
Tertiary Cache: | 16 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 16 |
# and size of DIMM: | 2 x 8192 MB |
Memory Details: | 8GB 1Rx8 PC4-3200AA-ED2-11; slots 1, 3 populated |
Power Supply Quantity and Rating (W): | 1 x 350 |
Power Supply Details: | HPE 350W ATX Power Supply Kit (P21652-B21) |
Disk Drive: | 1 x HPE 240GB M.2 SATA M.2 2280 5300B SSD (P19888-B21) |
Disk Controller: | Embedded SATA Controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x HPE Ethernet 1Gb 2-port BASE-T BCM5720 Adapter (onboard) |
NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | Windows Server 2019 Datacenter |
OS Version: | Version 1809 (OS Build 17763.2114) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode) |
JVM Command-line Options: | -server -Xmn10500m -Xms12000m -Xmx12000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=16 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes |
JVM Affinity: | None |
JVM Instances: | 1 |
JVM Initial Heap (MB): | 12000 |
JVM Maximum Heap (MB): | 12000 |
JVM Address Bits: | 64 |
Boot Firmware Version: | U61 v1.54 (01/13/2022) |
Management Firmware Version: | 2.55 Oct 01 2021 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | KB5005030 |
Hardware | |
---|---|
Hardware Vendor: | Hewlett Packard Enterprise |
Model: | ProLiant DL360 Gen9 |
CPU Description: | 2x Intel Xeon E5-2660 v3 |
Memory amount (GB): | 64 |
Software | |
---|---|
Operating System (OS): | Windows Server 2012 R2 |
JVM Vendor: | Oracle Corporation |
JVM Version: | 1.8.0_201-b09 (build 25.201-b09, mixed mode) |
CCS Version: | 1.2.6 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT310 |
Serial Number: | C2QM22002V |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-F91A5-140-1 |
Date of Calibration: | 26-Jun-2021 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.2-3976349f-20201208 |
Setup Description: | SUT Power Supply 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 77.2 | 21.0 |
90% | 66.7 | 20.9 |
80% | 56.5 | 20.9 |
70% | 48.9 | 21.1 |
60% | 43.5 | 21.1 |
50% | 38.7 | 21.0 |
40% | 34.7 | 20.9 |
30% | 31.5 | 20.9 |
20% | 28.9 | 20.9 |
10% | 25.7 | 20.9 |
Active Idle | 20.0 | 20.9 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
208V / 60 Hz / 1 phase / 2 wires | 20.9 | 132 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 843,202 | ||
Calibration 2 | 840,786 | ||
Calibration 3 | 841,535 | ||
ssj_ops@calibrated=841,160 | |||
100% | 99.9% | 841,160 | 839,939 |
90% | 90.1% | 757,044 | 758,192 |
80% | 80.1% | 672,928 | 674,167 |
70% | 70.4% | 588,812 | 592,057 |
60% | 60.1% | 504,696 | 505,879 |
50% | 49.7% | 420,580 | 418,105 |
40% | 40.0% | 336,464 | 336,352 |
30% | 30.1% | 252,348 | 253,165 |
20% | 20.0% | 168,232 | 168,494 |
10% | 10.0% | 84,116 | 83,729 |
Active Idle | 0 | 0 |
