GIGA-BYTE TECHNOLOGY CO., LTD. R282-Z90 SPECpower_ssj2008 = 19,704 overall ssj_ops/watt
Test Sponsor: GIGA-BYTE TECHNOLOGY CO., LTD. SPEC License #: 9082 Test Method: Single Node
Tested By: GIGA-BYTE TECHNOLOGY CO., LTD. Test Location: XinTien ,Taipei Test Date: Aug 11, 2022
Hardware Availability: Mar-2022 Software Availability: Dec-2021 Publication: Sep 1, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 12,735,865 515 24,717
90% 90.0% 11,496,418 471 24,425
80% 80.0% 10,208,500 418 24,417
70% 70.0% 8,939,528 376 23,754
60% 59.9% 7,652,075 345 22,155
50% 50.0% 6,379,094 320 19,946
40% 40.0% 5,105,806 293 17,427
30% 30.0% 3,834,531 266 14,396
20% 20.0% 2,557,269 238 10,730
10% 10.0% 1,275,175 207 6,171
Active Idle 0 112 0
∑ssj_ops / ∑power = 19,704

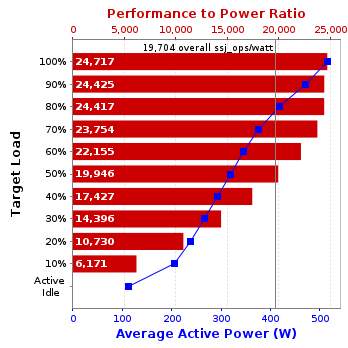

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: GIGA-BYTE TECHNOLOGY CO., LTD.
Model: R282-Z90
Form Factor: 2U
CPU Name: AMD EPYC 7773X
CPU Characteristics: 64-Core, 2.20GHz, 768MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 768 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 x 16 GB 2Rx8 PC4-3200AA-R ECC RDIMM (P/N M393A2K43DB3-CWE); slots A1,B1,C1,D1,E1,F1,G1,H1,I1,J1,K1,L1,M1,N1,O1,P1 populated
Power Supply Quantity and Rating (W): 1 x 1300
Power Supply Details: DELTA DPS-1300AB-4 (P/N 25EP0-213000-D0S)
Disk Drive: 1 x 3.2 TB PCIe NVMe SSD; (P/N MTFDHAL3T2TCU-1AR1ZABYY)
Disk Controller: Embedded NVMe Controller
# and type of Network Interface Cards (NICs) Installed: 1 x integrated 2-port NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId+1, physicalCoreId + 128, physicalCoreId + 129 }
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: M10 (12/02/2021)
Management Firmware Version: 12.49.06 (24/12/2020)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: GIGA-BYTE TECHNOLOGY CO., LTD.
Model: MMLP5AP-00
CPU Description: Intel i5-4200U
Memory amount (GB): 8
Software
Operating System (OS): Ubuntu 20.04.3 LTS (5.4.0-124-generic)
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91J219567
Connectivity: RS-232
Input Connection: Default
Metrology Institute: TAF
Accredited by: Chroma ATE Inc. Calibration Lab
Calibration Label: RE1110706162
Date of Calibration: 8-Aug-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-e8c7a49a-20201208
Setup Description: Connect to SUT PSU directly
Temperature Sensor temp1
Hardware Vendor: PCsensor.com
Model: USB9097 + DS18B20
Driver Version: 1.0.7
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10mm in front of SUT main airflow intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 515 22.8
90% 471 22.9
80% 418 22.9
70% 376 22.8
60% 345 22.7
50% 320 22.8
40% 293 22.3
30% 266 22.1
20% 238 21.9
10% 207 21.8
Active Idle 112 21.7
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 21.7 132

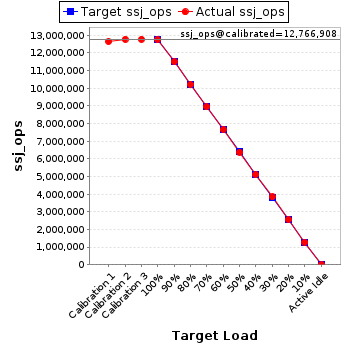

Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,644,850
Calibration 2     12,764,797
Calibration 3     12,769,019
ssj_ops@calibrated=12,766,908
100% 99.8% 12,766,908 12,735,865
90% 90.0% 11,490,217 11,496,418
80% 80.0% 10,213,526 10,208,500
70% 70.0% 8,936,835 8,939,528
60% 59.9% 7,660,145 7,652,075
50% 50.0% 6,383,454 6,379,094
40% 40.0% 5,106,763 5,105,806
30% 30.0% 3,830,072 3,834,531
20% 20.0% 2,553,382 2,557,269
10% 10.0% 1,276,691 1,275,175
Active Idle   0 0
Graph of results
