Hewlett Packard Enterprise ProLiant DL320 Gen11 SPECpower_ssj2008 = 8,832 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 14, 2023
Hardware Availability: Mar-2023 Software Availability: Jan-2023 Publication: May 3, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 3,801,129 331 11,480
90% 89.9% 3,429,156 296 11,587
80% 80.1% 3,055,657 259 11,819
70% 69.9% 2,665,929 237 11,269
60% 60.0% 2,288,854 222 10,313
50% 50.1% 1,911,422 208 9,196
40% 40.0% 1,527,091 196 7,796
30% 30.0% 1,144,668 184 6,216
20% 20.0% 762,089 172 4,434
10% 10.0% 380,114 159 2,387
Active Idle 0 111 0
∑ssj_ops / ∑power = 8,832

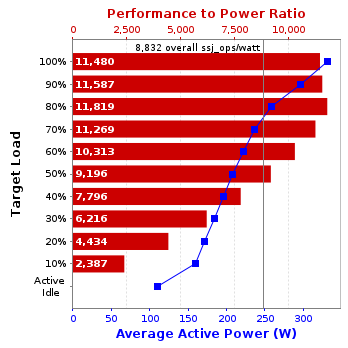

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL320 Gen11
Form Factor: 1U
CPU Name: Intel Xeon Gold 6454S 2.20 GHz (Intel Turbo Boost Technology up to 3.40 GHz)
CPU Characteristics: 32-Core, 2.20 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 32 cores, 1 chip, 32 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 8 x 16GB 1Rx8 PC5-4800; slots 1, 3, 5, 7, 10, 12, 14 and 16
Power Supply Quantity and Rating (W): 1 x 500
Power Supply Details: HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (865408-B21)
Disk Drive: 1 x 240GB M.2 SSD SATA (P47817-B21)
Disk Controller: embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom 5720 1GbE 2p BASE-T LOM Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.17+10-LTS-269, mixed mode)
JVM Command-line Options: -server -Xmn1550m -Xms1800m -Xmx1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 32 }
JVM Instances: 32
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: U63 v1.22 (01/18/2023)
Management Firmware Version: 1.20 Jan 10 2023
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019 - Version 1809
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_74-b02 (build 25.74-b02, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K112854
Connectivity: USB
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-GT25H-20-1
Date of Calibration: 20-May-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 331 25.4
90% 296 25.6
80% 259 25.8
70% 237 25.3
60% 222 25.2
50% 208 25.4
40% 196 25.1
30% 184 25.2
20% 172 25.3
10% 159 25.3
Active Idle 111 25.4
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 25.1 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,302,691
Calibration 2     3,810,895
Calibration 3     3,821,690
ssj_ops@calibrated=3,816,292
100% 99.6% 3,816,292 3,801,129
90% 89.9% 3,434,663 3,429,156
80% 80.1% 3,053,034 3,055,657
70% 69.9% 2,671,405 2,665,929
60% 60.0% 2,289,775 2,288,854
50% 50.1% 1,908,146 1,911,422
40% 40.0% 1,526,517 1,527,091
30% 30.0% 1,144,888 1,144,668
20% 20.0% 763,258 762,089
10% 10.0% 381,629 380,114
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
