SPECpower_ssj2008
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Supermicro GIGABYTE R152-P31 | SPECpower_ssj2008 = 11,497 overall ssj_ops/watt | ||||
| Test Sponsor: | Infobell IT Solutions Pvt. Ltd. | SPEC License #: | 6723 | Test Method: | Single Node |
| Tested By: | Infobell IT Solutions Pvt. Ltd. | Test Location: | San Jose, CA, USA | Test Date: | May 20, 2023 |
| Hardware Availability: | Sep-2022 | Software Availability: | Jan-2022 | Publication: | Jun 9, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

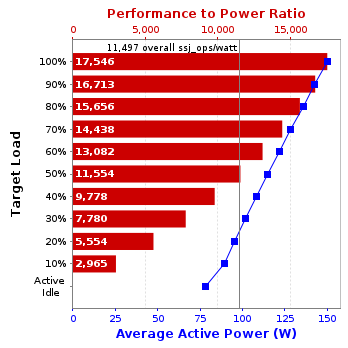

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.2% | 2,633,920 | 150 | 17,546 |
| 90% | 89.9% | 2,387,431 | 143 | 16,713 |
| 80% | 80.1% | 2,126,572 | 136 | 15,656 |
| 70% | 69.9% | 1,857,248 | 129 | 14,438 |
| 60% | 60.0% | 1,592,357 | 122 | 13,082 |
| 50% | 50.0% | 1,329,230 | 115 | 11,554 |
| 40% | 39.9% | 1,060,477 | 108 | 9,778 |
| 30% | 29.9% | 793,870 | 102 | 7,780 |
| 20% | 20.0% | 530,998 | 95.6 | 5,554 |
| 10% | 10.0% | 265,032 | 89.4 | 2,965 |
| Active Idle | 0 | 78.2 | 0 | |
| ∑ssj_ops / ∑power = | 11,497 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | sut |
| Hardware | |
|---|---|
| Hardware Vendor: | Supermicro |
| Model: | GIGABYTE R152-P31 |
| Form Factor: | 2U |
| CPU Name: | Ampere Altra Max 64-Bit Multi-Core Processor M128-30 |
| CPU Characteristics: | 128 Core, 3.0GHz |
| CPU Frequency (MHz): | 3000 |
| CPU(s) Enabled: | 128 cores, 1 chip, 128 cores/chip |
| Hardware Threads: | 128 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| Tertiary Cache: | None |
| Other Cache: | 16 MB I+D on chip per chip (SLC) |
| Memory Amount (GB): | 128 |
| # and size of DIMM: | 8 x 16 GB |
| Memory Details: | 8 x 16GB 2Rx8 PC4-3200; slots A0, B0, C0, D0, E0, F0, G0, H0 slots populated |
| Power Supply Quantity and Rating (W): | 1 x 650 |
| Power Supply Details: | 3Y Power Technology P/N: YM-2651YA10R |
| Disk Drive: | 1 x 960GB M.2 NVMe SSD (SAMSUNG MZ1LB960HAJQ-00007) |
| Disk Controller: | Non-Volatile Memory Host Controller Interface |
| # and type of Network Interface Cards (NICs) Installed: | 1 x 1Gbps with Intel Corporation I350 Gigabit Network Connection |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (see SUT Notes) |
| Operating System (OS): | Ubuntu 20.04 LTC |
| OS Version: | Kernel 5.4.0-148-generic |
| Filesystem: | xfs |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | OpenJDK 64-Bit Server VM (build 17.0.2+8-86, mixed mode, sharing) |
| JVM Command-line Options: | -server -Xms1500m -Xmx1500m -Xmn1300m -XX:NewRatio=2 -XX:+UseParallelGC -XX:TargetSurvivorRatio=90 -XX:FreqInlineSize=2000 -XX:InitialTenuringThreshold=12 -XX:MaxInlineSize=35 -XX:SurvivorRatio=30 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseTransparentHugePages -XX:+UseBiasedLocking -XX:InlineSmallCode=1000 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap |
| JVM Affinity: | for each i=1-32 {numactl --physcpubind=$(i-1)*4,$(i-1)*4+1,$(i-1)*4+2,$(i-1)*4+3 --localalloc } |
| JVM Instances: | 32 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | F31l |
| Management Firmware Version: | 12.60.10 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | HP |
| Model: | HP EliteBook 745 G6 |
| CPU Description: | AMD Ryzen 7 PRO 3700U |
| Memory amount (GB): | 32 |
| Software | |
|---|---|
| Operating System (OS): | Windows 10 Pro |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | OpenJDK 64-Bit Server VM 18.9 (build 11.0.2+9, mixed mode) |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C2XM03068V |
| Connectivity: | USB2 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TESCOM |
| Calibration Label: | T114528 |
| Date of Calibration: | 12-May-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | iButtonLink, Inc. |
| Model: | LinkUSBi + T-Probe |
| Driver Version: | FTDI USB Serial Device 1.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 150 | 23.4 |
| 90% | 143 | 23.3 |
| 80% | 136 | 23.2 |
| 70% | 129 | 23.2 |
| 60% | 122 | 23.2 |
| 50% | 115 | 23.2 |
| 40% | 108 | 23.1 |
| 30% | 102 | 23.1 |
| 20% | 95.6 | 23.0 |
| 10% | 89.4 | 23.0 |
| Active Idle | 78.2 | 23.0 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 60 Hz / 1 phase / 2 wires | 23.0 | 132 |

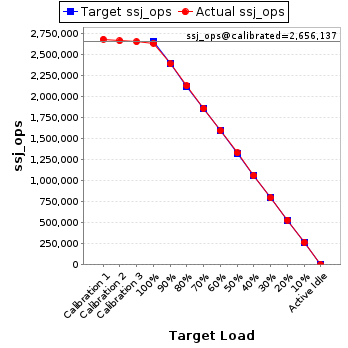

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 2,681,423 | ||
| Calibration 2 | 2,661,827 | ||
| Calibration 3 | 2,650,447 | ||
| ssj_ops@calibrated=2,656,137 | |||
| 100% | 99.2% | 2,656,137 | 2,633,920 |
| 90% | 89.9% | 2,390,523 | 2,387,431 |
| 80% | 80.1% | 2,124,910 | 2,126,572 |
| 70% | 69.9% | 1,859,296 | 1,857,248 |
| 60% | 60.0% | 1,593,682 | 1,592,357 |
| 50% | 50.0% | 1,328,068 | 1,329,230 |
| 40% | 39.9% | 1,062,455 | 1,060,477 |
| 30% | 29.9% | 796,841 | 793,870 |
| 20% | 20.0% | 531,227 | 530,998 |
| 10% | 10.0% | 265,614 | 265,032 |
| Active Idle | 0 | 0 | |
