SPECpower_ssj2008
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Supermicro AS-1015SV-WTNRT | SPECpower_ssj2008 = 26,485 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro | Test Location: | Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) | Test Date: | Aug 11, 2023 |
| Hardware Availability: | Sep-2023 | Software Availability: | Aug-2023 | Publication: | Sep 19, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 6,466,181 | 201 | 32,164 |
| 90% | 89.8% | 5,839,233 | 174 | 33,506 |
| 80% | 79.3% | 5,157,130 | 150 | 34,340 |
| 70% | 70.1% | 4,553,000 | 142 | 32,102 |
| 60% | 60.0% | 3,900,644 | 128 | 30,449 |
| 50% | 50.0% | 3,249,331 | 119 | 27,357 |
| 40% | 40.0% | 2,598,249 | 110 | 23,632 |
| 30% | 30.0% | 1,948,482 | 101 | 19,292 |
| 20% | 20.0% | 1,300,596 | 90.7 | 14,343 |
| 10% | 10.0% | 647,211 | 80.0 | 8,092 |
| Active Idle | 0 | 50.6 | 0 | |
| ∑ssj_ops / ∑power = | 26,485 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Supermicro |
| Model: | AS-1015SV-WTNRT |
| Form Factor: | 1U |
| CPU Name: | AMD EPYC 8534P |
| CPU Characteristics: | 64 Core, 2.30GHz, 128 MB cache |
| CPU Frequency (MHz): | 2300 |
| CPU(s) Enabled: | 64 cores, 1 chip, 128 cores/chip |
| Hardware Threads: | 128 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 2 MB I + 2 MB D on chip per core |
| Secondary Cache: | 64 MB I+D on chip per core |
| Tertiary Cache: | 128 MB I+D on chip per chip, 32 MB shared / 8 cores |
| Other Cache: | None |
| Memory Amount (GB): | 192 |
| # and size of DIMM: | 6 x 32 GB |
| Memory Details: | 32GB 2Rx8 PC5-4800B-R; slots A1, B1, C1, D1, E1, F1 populated |
| Power Supply Quantity and Rating (W): | 1 x 860 |
| Power Supply Details: | PWS-861A-1R |
| Disk Drive: | 1x480GB M.2 NVMe GEN4 Micron,HDS-MMN-MTFDKBA480TFR1BC |
| Disk Controller: | onboard SCU controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Dual Broadcom 57416 10Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver (see SUT Notes) |
| Operating System (OS): | Microsoft Windows Server 2022 Datacenter |
| OS Version: | Version 10.0.20348 Build 20348 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode) |
| JVM Command-line Options: | -server -Xms2048m -Xmx2048m -Xmn1900m -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap |
| JVM Affinity: | start /NODE [0-15] /AFFINITY [0x3, 0xC, 0x30, 0xC0,0x300, 0xC00, 0x3000, 0xC000] |
| JVM Instances: | 64 |
| JVM Initial Heap (MB): | 2048 |
| JVM Maximum Heap (MB): | 2048 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.0 |
| Management Firmware Version: | 01.01.01 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | KB5029250 |
| Hardware | |
|---|---|
| Hardware Vendor: | Supermicro |
| Model: | X11DPG |
| CPU Description: | Intel(R) Xeon(R) Gold 6142 2.60G |
| Memory amount (GB): | 96 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2019 Datacenter |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Jave(TM) SE Runtime Environment (build 1.7.0_80-b15) Java HotSpot(TM) 64-Bit Server VM(build 24.80-b11) |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation. |
| Model: | WT310 |
| Serial Number: | C3RF27027E |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | Omnio Calibration Lab. Co., Ltd. |
| Calibration Label: | OCL-230203F01008 |
| Date of Calibration: | 03-Feb-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10 mm in front of SUT main air intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 201 | 27.2 |
| 90% | 174 | 27.3 |
| 80% | 150 | 27.4 |
| 70% | 142 | 27.5 |
| 60% | 128 | 27.6 |
| 50% | 119 | 27.6 |
| 40% | 110 | 27.6 |
| 30% | 101 | 27.7 |
| 20% | 90.7 | 27.7 |
| 10% | 80.0 | 27.8 |
| Active Idle | 50.6 | 27.8 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 230V / 50 Hz / 1 phase / 2 wires | 27.2 | 10 |

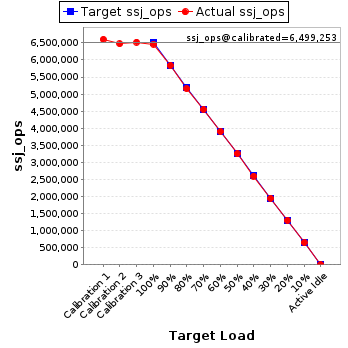

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 6,607,446 | ||
| Calibration 2 | 6,472,073 | ||
| Calibration 3 | 6,526,432 | ||
| ssj_ops@calibrated=6,499,253 | |||
| 100% | 99.5% | 6,499,253 | 6,466,181 |
| 90% | 89.8% | 5,849,327 | 5,839,233 |
| 80% | 79.3% | 5,199,402 | 5,157,130 |
| 70% | 70.1% | 4,549,477 | 4,553,000 |
| 60% | 60.0% | 3,899,552 | 3,900,644 |
| 50% | 50.0% | 3,249,626 | 3,249,331 |
| 40% | 40.0% | 2,599,701 | 2,598,249 |
| 30% | 30.0% | 1,949,776 | 1,948,482 |
| 20% | 20.0% | 1,299,851 | 1,300,596 |
| 10% | 10.0% | 649,925 | 647,211 |
| Active Idle | 0 | 0 | |
