Hewlett Packard Enterprise ProLiant DL345 Gen11 SPECpower_ssj2008 = 34,615 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Sep 23, 2024
Hardware Availability: Jan-2025 Software Availability: Jul-2024 Publication: Oct 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 18,699,442 455 41,086
90% 89.9% 16,850,256 422 39,961
80% 79.9% 14,982,864 383 39,092
70% 70.0% 13,127,066 327 40,151
60% 60.0% 11,246,641 297 37,830
50% 50.1% 9,385,466 265 35,395
40% 40.0% 7,508,710 235 31,949
30% 30.0% 5,620,652 204 27,506
20% 20.0% 3,744,423 173 21,686
10% 10.0% 1,882,582 143 13,194
Active Idle 0 72.8 0
∑ssj_ops / ∑power = 34,615

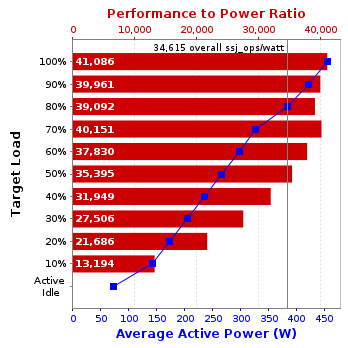

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL345 Gen11
Form Factor: 2U
CPU Name: AMD EPYC 9845 2.1 GHz
CPU Characteristics: 160-Core, 2.10 GHz 320 MB L3 Cache(Max. Boost Clock Up to 3.7 GHz)
CPU Frequency (MHz): 2100
CPU(s) Enabled: 160 cores, 1 chip, 160 cores/chip
Hardware Threads: 320 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16 GB 1Rx8 PC5-6400B-RD1-1211-XT; all DIMM slots populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (P38995-B21)
Disk Drive: 1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE (P08449-B21)
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP5
OS Version: 6.4.0-150600.21-default
Filesystem: XFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.12+8-LTS-286, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 160, physicalCoreId + 161}
JVM Instances: 80
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: A56 v2.10 (09/11/2024)
Management Firmware Version: 1.62 Aug 09 2024
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for SUSE Linux Enterprise Server 15
Boot Firmware Settings

BIOS Platform Configuration (RBSU):

Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 X E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Micorsoft Windows Server 2019 (Version 1809, Build 17763.3650)
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_91-b15 (build 25.91-b15, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310
Serial Number: C2QM22001V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-E8J0L-20-1
Date of Calibration: 25-Jan-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 455 24.4
90% 422 24.4
80% 383 24.3
70% 327 24.1
60% 297 24.2
50% 265 24.4
40% 235 24.2
30% 204 24.3
20% 173 24.6
10% 143 24.7
Active Idle 72.8 24.7
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 24.1 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     18,173,651
Calibration 2     18,787,647
Calibration 3     18,716,069
ssj_ops@calibrated=18,751,858
100% 99.7% 18,751,858 18,699,442
90% 89.9% 16,876,672 16,850,256
80% 79.9% 15,001,486 14,982,864
70% 70.0% 13,126,300 13,127,066
60% 60.0% 11,251,115 11,246,641
50% 50.1% 9,375,929 9,385,466
40% 40.0% 7,500,743 7,508,710
30% 30.0% 5,625,557 5,620,652
20% 20.0% 3,750,372 3,744,423
10% 10.0% 1,875,186 1,882,582
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
