SPEC® OMPG2012 Result

Copyright 2012-2019 Standard Performance Evaluation Corporation

Lenovo Global Technology

SPECompG_base2012 = 34.8

ThinkSystem SR950 (Intel Xeon Platinum 8280L,
2.70 GHz)

SPECompG_peak2012 = Not Run

OMP2012 license: 9017 Test date: Mar-2019
Test sponsor: Lenovo Global Technology Hardware Availability: Apr-2019
Tested by: Lenovo Global Technology Software Availability: Apr-2019

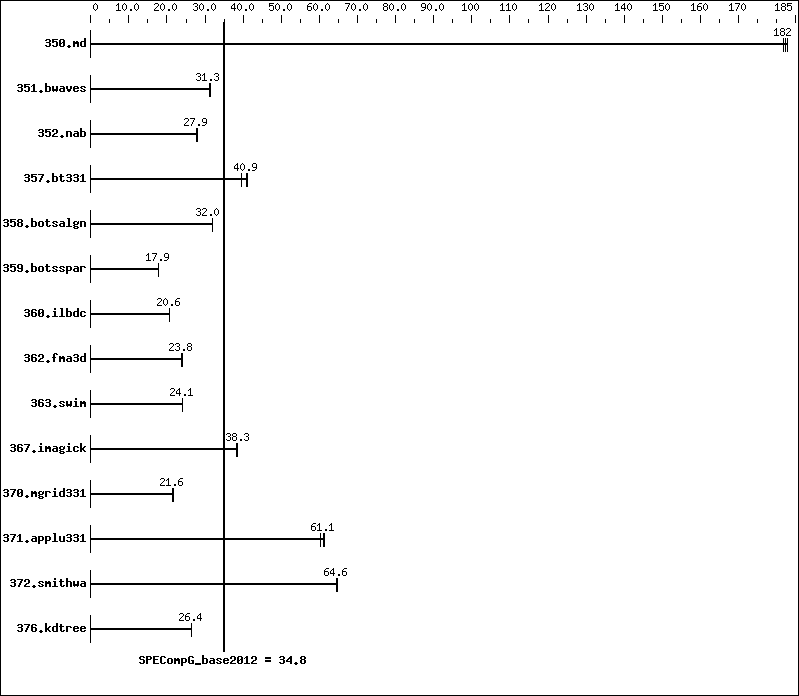

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8280L
CPU Characteristics: Intel Turbo Boost Technology up to 4.0 GHz
CPU MHz: 2700
CPU MHz Maximum: 4000
FPU: Integrated
CPU(s) enabled: 84 cores, 3 chips, 28 cores/chip, 2 threads/core
CPU(s) orderable: 2,3,4,6,8 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 38.5 MB I+D on chip per chip
Other Cache: None
Memory: 576 GB (36 x 16 GB 2Rx8 PC4-2933Y-R)
Disk Subsystem: 1x Lenovo 0.96TB PX04PMB NVMe Mainstream PCIe SSDs
Other Hardware: None
Base Threads Run: 168
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: Red Hat Enterprise Linux Server release 7.6,
Kernel 3.10.0-957.el7.x86_64
Compiler: C/C++/Fortran: Version 19.0.2.187 of Intel
Composer XE for Linux Build 20190117
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 168 25.5  182    25.4  182    25.3  183
351.bwaves 168 144    31.5  145    31.3  145    31.3
352.nab 168 140    27.8  139    27.9  140    27.9
357.bt331 168 116    40.9  115    41.1  120    39.5
358.botsalgn 168 136    32.0  136    32.0  136    32.0
359.botsspar 168 295    17.8  293    17.9  293    17.9
360.ilbdc 168 172    20.6  172    20.6  173    20.6
362.fma3d 168 160    23.7  160    23.8  159    24.0
363.swim 168 189    24.0  188    24.1  188    24.1
367.imagick 168 184    38.3  184    38.3  183    38.4
370.mgrid331 168 205    21.5  204    21.7  205    21.6
371.applu331 168 98.6  61.5  100    60.3  99.2  61.1
372.smithwa 168 83.0  64.6  83.0  64.6  82.9  64.7
376.kdtree 168 171    26.3  171    26.4  171    26.4

Operating System Notes

	ulimit -s unlimited

Platform Notes

 Sysinfo program /home/omp2012/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on localhost.localdomain Tue Mar 12 00:44:38 2019

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8280L CPU @ 2.70GHz
       3 "physical id"s (chips)
       168 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 28
       siblings  : 56
       physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 3: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
    cache size : 39424 KB

 From /proc/meminfo
    MemTotal:       593766652 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="Red Hat Enterprise Linux Server"
       VERSION="7.6 (Maipo)"
       ID="rhel"
       ID_LIKE="fedora"
       VARIANT="Server"
       VARIANT_ID="server"
       VERSION_ID="7.6"
       PRETTY_NAME="Red Hat Enterprise Linux Server 7.6 (Maipo)"
    redhat-release: Red Hat Enterprise Linux Server release 7.6 (Maipo)
    system-release: Red Hat Enterprise Linux Server release 7.6 (Maipo)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:7.6:ga:server

 uname -a:
    Linux localhost.localdomain 3.10.0-957.el7.x86_64 #1 SMP Thu Oct 4 20:48:51
    UTC 2018 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Mar 11 18:02

 SPEC is set to: /home/omp2012
    Filesystem            Type  Size  Used Avail Use% Mounted on
    /dev/mapper/rhel-home xfs   839G   33G  807G   4% /home

 Additional information from dmidecode:
   BIOS Lenovo -[PSE121I-1.50]- 03/01/2019
   Memory:
    60x NO DIMM NO DIMM
    36x Samsung M393A2K43CB2-CVF 16 GB 2933 MT/s 2 rank

 (End of data from sysinfo program)

General Notes

 =========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,1

 =========================================================================
 General OMP Library Settings
   KMP_LIBRARY=turnaround
   KMP_STACKSIZE=16G
   KMP_BLOCKTIME=infinite
   OMP_DYNAMIC=FALSE
   OMP_NESTED=FALSE
   OMP_SCHEDULE=static

 =========================================================================
 BIOS setting notes:
 Operating Mode set to Maximum Performance Mode
 =========================================================================
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
 is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O2   -qopenmp   -ipo    -xHOST   -ansi-alias

C++ benchmarks:

 -O2   -qopenmp   -ipo    -xHOST   -ansi-alias

Fortran benchmarks:

 -O2   -qopenmp   -ipo    -xHOST   -align array64byte

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/lenovo.20180912.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/lenovo.20180912.xml.
