Huawei Technologies Co., Ltd XH310 ssj_ops@100% = 1,317,977
ssj_ops@100% per Host = 329,494
ssj_ops@100% per JVM = 164,747
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Oct 12, 2009
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Nov 10, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,316,661
Calibration 2     1,322,078
Calibration 3     1,323,806
ssj_ops@calibrated=1,322,942
100% 99.6% 1,322,942 1,317,977
90% 90.0% 1,190,648 1,190,087
80% 80.2% 1,058,354 1,061,058
70% 70.1% 926,060 927,877
60% 60.2% 793,765 795,968
50% 50.0% 661,471 662,056
40% 40.0% 529,177 529,451
30% 30.0% 396,883 396,396
20% 20.0% 264,588 264,858
10% 10.0% 132,294 132,818
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 4 16 32 32.0 4 8
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Tecal X6000
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: PS-750-2 hot-swappable capable
Network Switch: H3C S1008A
Network Switch Details: 8-PORT H3C Aolynk S1008A
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Server shelf with 4 half-width nodes
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Huawei Technologies Co., Ltd
Model: XH310
Form Factor: 1U
CPU Name: Intel Xeon X3480
CPU Characteristics: Quad-Core, 3.06GHz, 8MB L3 Cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 160GB SSD 2.5" SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver enabled in OS
Operating System (OS): Windows Server 2008 R2, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1900m -Xmx1900m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0x0F,0xF0]
JVM Instances: 2
JVM Initial Heap (MB): 1900
JVM Maximum Heap (MB): 1900
JVM Address Bits: 64
Boot Firmware Version: FUSAV015
Management Firmware Version: V015
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere application server V7.0 for Windows on X86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
X6000-2 326,757
x6000-1 329,693
x6000-3 331,086
x6000-4 330,441
ssj_ops@100% 1,317,977
ssj_ops@100% per Host 329,494
ssj_ops@100% per JVM 164,747
Graph of per-host results
Host 'X6000-2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     329,416
Calibration 2     329,906
Calibration 3     329,017
ssj_ops@calibrated=329,461
100% 99.2% 329,461 326,757
90% 89.9% 296,515 296,071
80% 80.3% 263,569 264,539
70% 70.5% 230,623 232,186
60% 60.7% 197,677 199,863
50% 49.8% 164,731 164,131
40% 40.1% 131,785 132,208
30% 30.1% 98,838 99,122
20% 19.9% 65,892 65,400
10% 10.0% 32,946 33,055
Active Idle   0 0
Graph of results
Host 'x6000-1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     328,941
Calibration 2     328,543
Calibration 3     330,682
ssj_ops@calibrated=329,613
100% 100.0% 329,613 329,693
90% 89.8% 296,651 296,063
80% 79.8% 263,690 262,922
70% 70.0% 230,729 230,650
60% 60.2% 197,768 198,523
50% 50.4% 164,806 166,111
40% 39.8% 131,845 131,278
30% 30.2% 98,884 99,491
20% 20.0% 65,923 66,083
10% 10.3% 32,961 33,883
Active Idle   0 0
Graph of results
Host 'x6000-3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     329,473
Calibration 2     332,313
Calibration 3     332,481
ssj_ops@calibrated=332,397
100% 99.6% 332,397 331,086
90% 89.9% 299,157 298,939
80% 80.3% 265,918 266,887
70% 70.3% 232,678 233,583
60% 59.7% 199,438 198,604
50% 49.8% 166,199 165,610
40% 40.0% 132,959 133,023
30% 29.7% 99,719 98,723
20% 20.2% 66,479 67,033
10% 9.9% 33,240 32,807
Active Idle   0 0
Graph of results

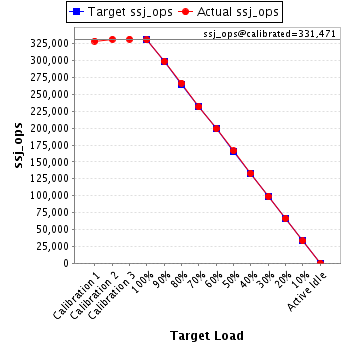

Host 'x6000-4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     328,831
Calibration 2     331,316
Calibration 3     331,626
ssj_ops@calibrated=331,471
100% 99.7% 331,471 330,441
90% 90.2% 298,324 299,013
80% 80.5% 265,177 266,711
70% 69.8% 232,030 231,458
60% 60.0% 198,883 198,977
50% 50.1% 165,736 166,204
40% 40.1% 132,588 132,942
30% 29.9% 99,441 99,060
20% 20.0% 66,294 66,342
10% 10.0% 33,147 33,072
Active Idle   0 0
Graph of results
