SPECpower_ssj2008

ASUSTeK Computer Inc. RS720-E9-RS8			SPECpower_ssj2008 = 14,274 overall ssj_ops/watt
Test Sponsor:	ASUSTeK Computer Inc.	SPEC License #:	9016	Test Method:	Single Node
Tested By:	ASUSTeK Computer Inc.	Test Location:	Taipei, Taiwan.	Test Date:	May 9, 2019
Hardware Availability:	Apr-2019	Software Availability:	Aug-2018	Publication:	Jul 17, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	ASUSTeK Computer Inc.
Model:	RS720-E9-RS8
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8280L
CPU Characteristics:	28-Core, 2.7GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16 GB
Memory Details:	12 x 16GB 2Rx8 PC4-2933Y ECC RDIMM; slots DIMM_A1, DIMMM_B1, DIMMM_C1, DIMMM_D1, DIMMM_E1, DIMMM_F1, DIMMM_G1, DIMMM_H1, DIMMM_J1, DIMMM_K1, DIMMM_L1, DIMMM_M1
Power Supply Quantity and Rating (W):	1 x 850
Power Supply Details:	Delta DPS-850AB-3 Rev.C
Disk Drive:	1 x 960GB Intel DC S3520 SATA 2.5 SSD P/N: 03B01-00160400
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmx1550m -Xms1550m -Xmn1300m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParalleOldGC -XX:+AggressiveOpts
JVM Affinity:	start /NODE [0,2] /AFFINITY [3, C, 30, C0, C000, 30000, C0000, 30000000, C0000000, 300000000, C00000000, C0000000000, 300000000000, C00000000000]; start /NODE [1,3] /AFFINITY [3, C, 30, 3000, C000, 30000, C0000, 30000000, C0000000, 300000000, 30000000000, C0000000000, 300000000000, C00000000000]
JVM Instances:	56
JVM Initial Heap (MB):	1550
JVM Maximum Heap (MB):	1550
JVM Address Bits:	64
Boot Firmware Version:	5102
Management Firmware Version:	1.13.3
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	MS-KB4343891

See SUT Notes

Using the Local Security Settings Console.
Lock pages in Memory was Enabled for the User Running the Benchmark.
Balanced mode.
Benchmark was started via Windows Remote Desktop Connection.
Hard Disk set to Turn Off After 1 Minute.
Display Set to Turn Off After 1 Minute.
Minmum Processor State 0%.
Maximum Processor State:100%.
System Cooling Poloicy:Passive.
PCIE Power Management Maximum Power Saving.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f
Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: May 15, 2019).
NA:The test sponsor attests, as of date of publication, the CVE-2017-5754(Meltdown) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5753(Spectre variant 1) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5715(Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Windows Server 2012 R2 Datacenter (64-bit)
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Good Will Instrument Co., Ltd.
Model:	GPM-8212
Serial Number:	GCR150073
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NML
Accredited by:	Tai Yi Electronics & Surveillance Co., Ltd.
Calibration Label:	GCR150073
Date of Calibration:	24-Apr-2019
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	Connected to PSU1

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.70.105.0
Connectivity:	RS-232
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50 mm.

SPECpower_ssj.props input.loca_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.

.

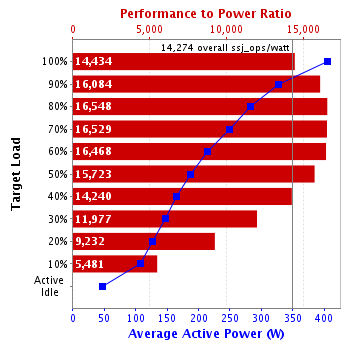

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	405	21.8
90%	328	21.7
80%	283	21.6
70%	248	21.6
60%	213	21.5
50%	187	21.5
40%	165	21.5
30%	147	21.5
20%	127	21.5
10%	107	21.5
Active Idle	47.4	21.5

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 60 Hz / 1 phase / 2 wires	21.5	132

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
