ASUSTeK Computer Inc. RS620SA-E10-RS12 ssj_ops@100% = 36,645,962
ssj_ops@100% per Host = 6,107,660
ssj_ops@100% per JVM = 190,864
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Multi Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: Sep 18, 2020
Hardware Availability: Sep-2020 Software Availability: Jul-2020 Publication: Oct 7, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     36,769,955
Calibration 2     36,741,132
Calibration 3     36,782,571
ssj_ops@calibrated=36,761,851
100% 99.7% 36,761,851 36,645,962
90% 90.0% 33,085,666 33,091,888
80% 80.0% 29,409,481 29,403,013
70% 70.0% 25,733,296 25,729,307
60% 60.0% 22,057,111 22,063,043
50% 50.0% 18,380,926 18,387,148
40% 40.0% 14,704,741 14,709,689
30% 30.0% 11,028,555 11,026,069
20% 20.0% 7,352,370 7,350,532
10% 10.0% 3,676,185 3,677,491
Active Idle   0 0

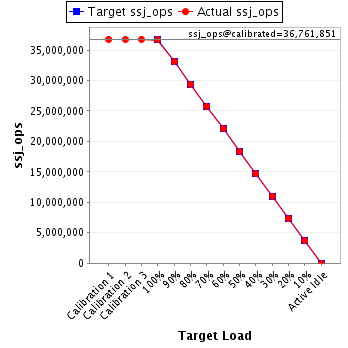

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
6 6 384 768 768 6 192
System Under Test
Shared Hardware
Shared Hardware
Enclosure: RS620SA-E10
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 3000
Power Supply Details: GOSPOWER G1236-3000WNA Rev:0.1 P/N: 0A100-00440000
Network Switch: ASUSTek GigaX1116
Network Switch Details: 16-Port Giga LAN
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: 16 Port Gigabit Ethernet Switch
Set: 'RS620SA-E10-RS12'
Set Identifier: RS620SA-E10-RS12
Set Description: System Under Test
# of Identical Nodes: 6
Comment: 'SUT'
Hardware per Node
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS620SA-E10-RS12
Form Factor: 1U
CPU Name: AMD EPYC 7742 2.25Ghz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 8 x 16GB 2Rx8 PC4-3200AA-R ECC RDIMM; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 240GB Seagate Nytro 510DCT M.2 PCIE SSD P/N: 03B03-00130200
Disk Controller: Integrated PCIE controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I210 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled(See SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 15 SP1
OS Version: 4.12.14-195-default
Filesystem: xfs
JVM Vendor: Oracle
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 14.0.2+12-46, mixed mode, sharing), version 14.0.2
JVM Command-line Options: -server -Xmn1200m -Xms1400m -Xmx1400m -XX:MaxTenuringThreshold=1 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=3000 -XX:+UseParallelGC -XX:+UseLargePages -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each two physicalCores { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 64, physicalCoreId + 65 -l }
JVM Instances: 32
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: 0305
Management Firmware Version: 2.1.09
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Host Instance Summary
Host ssj_ops@100%
node1 6,083,814
node2 6,075,488
node3 6,120,015
node4 6,131,378
node5 6,087,804
node6 6,147,463
ssj_ops@100% 36,645,962
ssj_ops@100% per Host 6,107,660
ssj_ops@100% per JVM 190,864
Graph of per-host results
Host 'node1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,094,744
Calibration 2     6,099,855
Calibration 3     6,105,618
ssj_ops@calibrated=6,102,736
100% 99.7% 6,102,736 6,083,814
90% 90.0% 5,492,463 5,491,256
80% 80.0% 4,882,189 4,882,486
70% 70.0% 4,271,915 4,271,097
60% 59.9% 3,661,642 3,658,248
50% 50.1% 3,051,368 3,054,927
40% 40.0% 2,441,095 2,443,879
30% 30.0% 1,830,821 1,829,000
20% 20.0% 1,220,547 1,222,013
10% 10.0% 610,274 611,682
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,109,158
Calibration 2     6,093,387
Calibration 3     6,101,434
ssj_ops@calibrated=6,097,410
100% 99.6% 6,097,410 6,075,488
90% 89.9% 5,487,669 5,484,340
80% 80.0% 4,877,928 4,878,645
70% 70.0% 4,268,187 4,268,213
60% 60.1% 3,658,446 3,666,352
50% 50.1% 3,048,705 3,052,134
40% 40.0% 2,438,964 2,439,366
30% 30.0% 1,829,223 1,830,412
20% 20.0% 1,219,482 1,220,742
10% 10.0% 609,741 607,956
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,140,952
Calibration 2     6,132,721
Calibration 3     6,140,556
ssj_ops@calibrated=6,136,638
100% 99.7% 6,136,638 6,120,015
90% 90.0% 5,522,974 5,521,619
80% 80.1% 4,909,310 4,916,131
70% 69.9% 4,295,647 4,286,712
60% 60.1% 3,681,983 3,685,231
50% 50.0% 3,068,319 3,066,868
40% 40.0% 2,454,655 2,454,309
30% 29.9% 1,840,991 1,836,961
20% 20.0% 1,227,328 1,227,298
10% 10.0% 613,664 614,460
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,155,816
Calibration 2     6,150,843
Calibration 3     6,155,317
ssj_ops@calibrated=6,153,080
100% 99.6% 6,153,080 6,131,378
90% 90.1% 5,537,772 5,542,712
80% 79.9% 4,922,464 4,917,759
70% 70.1% 4,307,156 4,314,829
60% 60.0% 3,691,848 3,691,496
50% 50.1% 3,076,540 3,081,119
40% 40.0% 2,461,232 2,461,798
30% 30.0% 1,845,924 1,844,988
20% 20.0% 1,230,616 1,231,362
10% 10.0% 615,308 614,527
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node5' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,114,430
Calibration 2     6,102,625
Calibration 3     6,110,600
ssj_ops@calibrated=6,106,612
100% 99.7% 6,106,612 6,087,804
90% 90.0% 5,495,951 5,498,232
80% 79.8% 4,885,290 4,875,313
70% 70.0% 4,274,628 4,275,998
60% 60.0% 3,663,967 3,661,703
50% 50.0% 3,053,306 3,051,913
40% 40.0% 2,442,645 2,442,253
30% 30.0% 1,831,984 1,832,345
20% 20.0% 1,221,322 1,220,535
10% 10.0% 610,661 611,659
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node6' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,154,854
Calibration 2     6,161,701
Calibration 3     6,169,048
ssj_ops@calibrated=6,165,374
100% 99.7% 6,165,374 6,147,463
90% 90.1% 5,548,837 5,553,729
80% 80.0% 4,932,300 4,932,679
70% 69.9% 4,315,762 4,312,457
60% 60.0% 3,699,225 3,700,014
50% 50.0% 3,082,687 3,080,186
40% 40.0% 2,466,150 2,468,085
30% 30.0% 1,849,612 1,852,364
20% 19.9% 1,233,075 1,228,581
10% 10.0% 616,537 617,206
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
