SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 57,681,449 ssj_ops@100% per Host = 11,536,290 ssj_ops@100% per JVM = 1,442,036
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Aug 27, 2018
Hardware Availability:	Jun-2018	Software Availability:	Mar-2018	Publication:	Sep 12, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			57,794,876
Calibration 2			57,753,036
Calibration 3			57,853,649
ssj_ops@calibrated=57,803,343
100%	99.8%	57,803,343	57,681,449
90%	90.0%	52,023,008	52,041,367
80%	80.0%	46,242,674	46,215,032
70%	70.0%	40,462,340	40,481,226
60%	60.0%	34,682,006	34,664,195
50%	50.0%	28,901,671	28,919,180
40%	40.0%	23,121,337	23,117,245
30%	30.0%	17,341,003	17,335,411
20%	20.0%	11,560,669	11,564,486
10%	10.0%	5,780,334	5,779,352
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
5	20	560	1,120	1,920	5	40

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	HPE Synergy 12000 Frame
Form Factor:	10U
Power Supply Quantity and Rating (W):	6 x 2650
Power Supply Details:	HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1
Network Switch Details:	HP A5820X Series Switch JG219A
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	1 x HPE Synergy 10Gb Pass Thru Module (799330-B21), 1 x HPE Synergy Composer (804353-B21), 1 x HPE Synergy Frame Link Module (804942-B21)
Comment:	Network switch not measured for power

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	5
Comment:	SUT

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	Other
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x HPE 480GB SATA 6G Read Intensive M.2 (875319-B21)
Disk Controller:	1 x HPE Smart Array S100i SR Gen10 (784308-B21)
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=30 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,2,4,6] /AFFINITY [0x0000000FC0FF, 0xFC0FF0000000]; start /NODE [1,3,5,7] /AFFINITY [0x0000000FF03F,0xFF03F0000000]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v1.32 (02/01/2018)
Management Firmware Version:	1.15 August 17 2017
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898

Boot Firmware Settings

USB Control: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled
SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled
x2APIC: Disabled
Memory Refresh Rate: 1x Refresh
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Power Regulator: OS Control
Energy Performance Bias: Balanced Power
Turbo Boost Technology: Disabled
Collaborative Power Control: Disabled
DMI Link Frequency: Gen 1
Sub-NUMA Clustering: Enabled
Intel NIC DMA Channels (IOAT): Disabled
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
DCU IP Prefetcher: Disabled
LLC Prefetcher: Disabled
XPT Prefetcher: Enabled
UPI Link Frequency: Min UPI Speed
Maximum PCI Express Speed: PCIe Generation 1.0
Embedded SATA Configuration: Smart Array SW RAID Support
Embedded SATA Controller #1: Disabled
AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run initiated via Windows Remote Desktop Connection
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.
Windows Power Plan = Balanced
Turn off display = 1 minute
Turn off hard disk = 1 minute
Processor power management: Minimum Processor State = 0%, Maximum Processor State = 100%
System cooling policy = Active
Synergy Frame Power Supply mode set to Redundant Power Supply via HPE OneView.

Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Aug 14, 2018)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

Host Instance Summary

Host	ssj_ops@100%
Node02	11,514,997
Node03	11,553,149
Node04	11,543,185
Node05	11,499,199
Node06	11,570,919
ssj_ops@100%	57,681,449
ssj_ops@100% per Host	11,536,290
ssj_ops@100% per JVM	1,442,036

Host 'Node02' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,526,569
Calibration 2			11,522,253
Calibration 3			11,545,658
ssj_ops@calibrated=11,533,956
100%	99.8%	11,533,956	11,514,997
90%	90.1%	10,380,560	10,390,419
80%	79.9%	9,227,164	9,213,264
70%	70.0%	8,073,769	8,079,337
60%	60.0%	6,920,373	6,917,200
50%	50.0%	5,766,978	5,763,758
40%	40.0%	4,613,582	4,618,084
30%	30.0%	3,460,187	3,461,799
20%	20.0%	2,306,791	2,307,629
10%	10.0%	1,153,396	1,151,401
Active Idle		0	0

See the Host Performance Report for additional details.

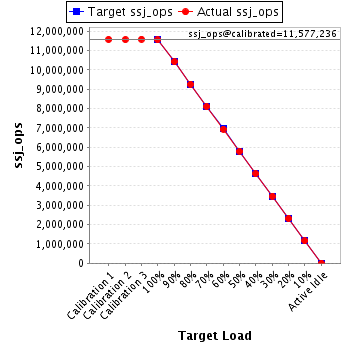

Host 'Node03' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,576,021
Calibration 2			11,565,890
Calibration 3			11,588,582
ssj_ops@calibrated=11,577,236
100%	99.8%	11,577,236	11,553,149
90%	90.0%	10,419,512	10,421,703
80%	80.0%	9,261,789	9,262,791
70%	70.0%	8,104,065	8,106,926
60%	59.9%	6,946,341	6,938,901
50%	50.1%	5,788,618	5,796,487
40%	40.0%	4,630,894	4,626,683
30%	30.0%	3,473,171	3,473,488
20%	20.0%	2,315,447	2,319,006
10%	10.0%	1,157,724	1,158,605
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'Node04' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,570,470
Calibration 2			11,560,062
Calibration 3			11,584,011
ssj_ops@calibrated=11,572,036
100%	99.8%	11,572,036	11,543,185
90%	90.0%	10,414,833	10,419,848
80%	80.0%	9,257,629	9,256,726
70%	70.0%	8,100,426	8,100,428
60%	60.0%	6,943,222	6,940,192
50%	50.0%	5,786,018	5,791,303
40%	40.0%	4,628,815	4,631,173
30%	30.0%	3,471,611	3,467,336
20%	20.0%	2,314,407	2,314,043
10%	10.0%	1,157,204	1,155,741
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'Node05' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,526,432
Calibration 2			11,518,288
Calibration 3			11,532,221
ssj_ops@calibrated=11,525,255
100%	99.8%	11,525,255	11,499,199
90%	90.0%	10,372,729	10,371,024
80%	79.9%	9,220,204	9,205,443
70%	70.1%	8,067,678	8,073,933
60%	60.0%	6,915,153	6,915,239
50%	50.0%	5,762,627	5,767,129
40%	40.0%	4,610,102	4,608,074
30%	30.0%	3,457,576	3,453,454
20%	20.0%	2,305,051	2,306,968
10%	10.0%	1,152,525	1,153,513
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'Node06' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,595,383
Calibration 2			11,586,543
Calibration 3			11,603,178
ssj_ops@calibrated=11,594,860
100%	99.8%	11,594,860	11,570,919
90%	90.0%	10,435,374	10,438,373
80%	80.0%	9,275,888	9,276,807
70%	70.0%	8,116,402	8,120,601
60%	60.0%	6,956,916	6,952,664
50%	50.0%	5,797,430	5,800,503
40%	40.0%	4,637,944	4,633,230
30%	30.0%	3,478,458	3,479,334
20%	20.0%	2,318,972	2,316,840
10%	10.0%	1,159,486	1,160,092
Active Idle		0	0

See the Host Performance Report for additional details.
