Creo viewset (creo-03)

The creo-03 viewset was created from traces of the graphics workload generated by the Creo™ 4 application from PTC. Model sizes range from 20 to 48 million vertices. The viewsets include numerous rendering modes supported by the application. Order-independent transparency is enabled for all models with transparent components.

Viewset tests

  1. Scorpion car, shaded with reflections, SSAO, bump map, transparency with color, 8x anti-aliasing (AA)
  2. Submarine, shaded with reflections, SSAO, bump map, image background, 4x AA
  3. World car, shaded with reflections, SSAO, bump map, transparency with color, 8x AA
  4. World car, shaded, no AA
  5. Scorpion car, shaded, no AA
  6. Submarine, shaded 4x AA
  7. World car, shaded with edges, 4x AA
  8. Scorpion car, shaded with edges, no AA
  9. Submarine, shaded with high-quality edges, 8x AA
  10. World car, hidden lines, no AA
  11. Scorpion car, hidden lines, 8x AA
  12. Submarine, no hidden lines, no AA
  13. Scorpion car, no hidden lines, 8x AA

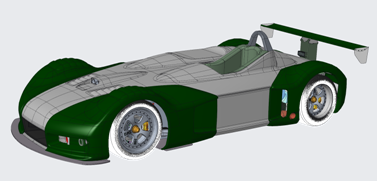

Worldcar model courtesy of PTC.
