Dell Inc. PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz) ssj_ops@100% = 57,024,126
ssj_ops@100% per Host = 3,564,008
ssj_ops@100% per JVM = 891,002
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 5, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: May 25, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     57,152,526
Calibration 2     57,112,617
Calibration 3     57,249,989
ssj_ops@calibrated=57,181,303
100% 99.7% 57,181,303 57,024,126
90% 90.7% 51,463,172 51,840,366
80% 79.9% 45,745,042 45,685,894
70% 70.0% 40,026,912 40,004,429
60% 60.0% 34,308,782 34,299,445
50% 50.0% 28,590,651 28,593,901
40% 40.0% 22,872,521 22,888,686
30% 30.0% 17,154,391 17,158,561
20% 20.0% 11,436,261 11,441,433
10% 10.0% 5,718,130 5,720,459
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
16 32 704 1,408 2,048 16 64
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Dell PowerEdge M1000e
Form Factor: 10U
Power Supply Quantity and Rating (W): 3 x 3000
Power Supply Details: Dell PN 8V4DK
Network Switch: Dell PowerConnect 6248
Network Switch Details: 48 Port 1Gb Ethernet Switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: Dell M1000e Chassis Management Controller, Dell P/N: JV95D; Dell 16-Port Gigabit Ethernet Pass-Through Module, Dell P/N: WW060
Comment: Network switch not measured for power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: M630
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2699 v4 2.20 GHz
CPU Characteristics: 22 Core, 2.20 GHz, 55 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 16GB 2Rx4 PC4-2400T ECC, Dell P/N HNDJ7, Slots A1-4, B1-4 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB 2.5" SATA SSD, Dell P/N:KX83R
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Broadcom BCM57810 10Gb Dual Port, Dell P/N C0P7J
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Mode in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.17196
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts"
JVM Affinity: start /NODE [0,1,2,3] /affinity [3FFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 2.0.1
Management Firmware Version: 2.30.30.30
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
Bobby-Blade1 3,551,401
Bobby-Blade10 3,554,913
Bobby-Blade11 3,547,328
Bobby-Blade12 3,555,651
Bobby-Blade13 3,566,205
Bobby-Blade14 3,578,086
Bobby-Blade15 3,564,974
Bobby-Blade16 3,521,372
Bobby-Blade2 3,611,467
Bobby-Blade3 3,577,643
Bobby-Blade4 3,547,233
Bobby-Blade5 3,605,068
Bobby-Blade6 3,553,431
Bobby-Blade7 3,552,226
Bobby-Blade8 3,574,388
Bobby-Blade9 3,562,742
ssj_ops@100% 57,024,126
ssj_ops@100% per Host 3,564,008
ssj_ops@100% per JVM 891,002
Graph of per-host results
Host 'Bobby-Blade1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,559,786
Calibration 2     3,563,216
Calibration 3     3,569,409
ssj_ops@calibrated=3,566,312
100% 99.6% 3,566,312 3,551,401
90% 90.6% 3,209,681 3,231,317
80% 79.9% 2,853,050 2,851,071
70% 69.9% 2,496,419 2,492,431
60% 60.0% 2,139,787 2,141,145
50% 50.1% 1,783,156 1,785,217
40% 40.0% 1,426,525 1,427,101
30% 30.0% 1,069,894 1,070,074
20% 20.0% 713,262 714,823
10% 10.0% 356,631 356,513
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Bobby-Blade10' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,570,589
Calibration 2     3,569,306
Calibration 3     3,566,547
ssj_ops@calibrated=3,567,927
100% 99.6% 3,567,927 3,554,913
90% 90.3% 3,211,134 3,223,558
80% 79.9% 2,854,341 2,849,491
70% 69.9% 2,497,549 2,495,329
60% 60.1% 2,140,756 2,143,642
50% 50.0% 1,783,963 1,782,860
40% 40.0% 1,427,171 1,426,397
30% 30.0% 1,070,378 1,069,225
20% 19.9% 713,585 711,225
10% 10.0% 356,793 358,011
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Bobby-Blade11' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,576,756
Calibration 2     3,553,331
Calibration 3     3,560,242
ssj_ops@calibrated=3,556,786
100% 99.7% 3,556,786 3,547,328
90% 90.6% 3,201,108 3,222,947
80% 79.8% 2,845,429 2,839,358
70% 69.9% 2,489,751 2,486,446
60% 59.9% 2,134,072 2,131,098
50% 50.1% 1,778,393 1,780,635
40% 40.1% 1,422,715 1,424,833
30% 30.0% 1,067,036 1,066,509
20% 20.0% 711,357 711,112
10% 10.0% 355,679 355,258
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Bobby-Blade12' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,559,032
Calibration 2     3,552,737
Calibration 3     3,598,028
ssj_ops@calibrated=3,575,383
100% 99.4% 3,575,383 3,555,651
90% 90.7% 3,217,844 3,243,003
80% 79.9% 2,860,306 2,855,888
70% 70.0% 2,502,768 2,503,686
60% 60.0% 2,145,230 2,144,129
50% 50.0% 1,787,691 1,787,301
40% 40.0% 1,430,153 1,431,617
30% 30.1% 1,072,615 1,076,019
20% 20.1% 715,077 717,438
10% 10.0% 357,538 358,470
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Bobby-Blade13' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,565,525
Calibration 2     3,564,921
Calibration 3     3,578,628
ssj_ops@calibrated=3,571,774
100% 99.8% 3,571,774 3,566,205
90% 90.5% 3,214,597 3,232,254
80% 79.9% 2,857,420 2,852,843
70% 69.9% 2,500,242 2,496,619
60% 59.9% 2,143,065 2,140,943
50% 49.9% 1,785,887 1,781,315
40% 40.0% 1,428,710 1,428,280
30% 30.0% 1,071,532 1,072,653
20% 20.0% 714,355 714,537
10% 10.0% 357,177 358,391
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Bobby-Blade14' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,573,388
Calibration 2     3,583,780
Calibration 3     3,600,189
ssj_ops@calibrated=3,591,984
100% 99.6% 3,591,984 3,578,086
90% 90.5% 3,232,786 3,252,125
80% 79.9% 2,873,588 2,871,387
70% 69.9% 2,514,389 2,510,758
60% 60.0% 2,155,191 2,156,886
50% 49.9% 1,795,992 1,793,584
40% 40.0% 1,436,794 1,435,980
30% 30.0% 1,077,595 1,076,138
20% 20.0% 718,397 718,860
10% 10.0% 359,198 360,689
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Bobby-Blade15' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,574,285
Calibration 2     3,581,139
Calibration 3     3,586,155
ssj_ops@calibrated=3,583,647
100% 99.5% 3,583,647 3,564,974
90% 90.8% 3,225,282 3,252,212
80% 80.0% 2,866,917 2,868,312
70% 69.9% 2,508,553 2,504,225
60% 59.9% 2,150,188 2,145,409
50% 49.9% 1,791,823 1,789,570
40% 39.9% 1,433,459 1,430,065
30% 30.1% 1,075,094 1,077,584
20% 20.1% 716,729 718,595
10% 10.0% 358,365 357,135
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Bobby-Blade16' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,525,646
Calibration 2     3,525,739
Calibration 3     3,538,061
ssj_ops@calibrated=3,531,900
100% 99.7% 3,531,900 3,521,372
90% 90.4% 3,178,710 3,192,652
80% 79.9% 2,825,520 2,822,796
70% 70.2% 2,472,330 2,480,294
60% 60.0% 2,119,140 2,119,982
50% 49.9% 1,765,950 1,761,974
40% 40.2% 1,412,760 1,419,594
30% 30.0% 1,059,570 1,061,139
20% 20.0% 706,380 707,131
10% 10.0% 353,190 352,090
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Bobby-Blade2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,596,876
Calibration 2     3,610,794
Calibration 3     3,613,881
ssj_ops@calibrated=3,612,337
100% 100.0% 3,612,337 3,611,467
90% 90.6% 3,251,104 3,272,406
80% 79.9% 2,889,870 2,885,344
70% 69.9% 2,528,636 2,523,848
60% 59.9% 2,167,402 2,165,090
50% 50.0% 1,806,169 1,807,164
40% 40.1% 1,444,935 1,448,112
30% 30.0% 1,083,701 1,083,762
20% 20.0% 722,467 721,502
10% 10.0% 361,234 362,483
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

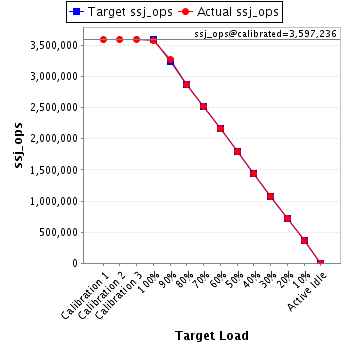

Host 'Bobby-Blade3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,590,343
Calibration 2     3,595,204
Calibration 3     3,599,268
ssj_ops@calibrated=3,597,236
100% 99.5% 3,597,236 3,577,643
90% 90.9% 3,237,512 3,270,307
80% 79.9% 2,877,789 2,872,616
70% 70.0% 2,518,065 2,518,400
60% 60.0% 2,158,342 2,157,748
50% 49.9% 1,798,618 1,794,738
40% 40.0% 1,438,894 1,440,514
30% 30.0% 1,079,171 1,077,857
20% 20.0% 719,447 721,049
10% 10.0% 359,724 358,860
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Bobby-Blade4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,556,089
Calibration 2     3,541,308
Calibration 3     3,547,250
ssj_ops@calibrated=3,544,279
100% 100.1% 3,544,279 3,547,233
90% 90.5% 3,189,851 3,206,694
80% 79.8% 2,835,423 2,826,900
70% 70.0% 2,480,995 2,480,883
60% 60.1% 2,126,567 2,131,798
50% 50.0% 1,772,139 1,772,453
40% 40.0% 1,417,711 1,417,636
30% 30.0% 1,063,284 1,062,530
20% 20.0% 708,856 708,887
10% 10.0% 354,428 354,919
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Bobby-Blade5' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,602,609
Calibration 2     3,605,333
Calibration 3     3,614,221
ssj_ops@calibrated=3,609,777
100% 99.9% 3,609,777 3,605,068
90% 90.4% 3,248,800 3,264,181
80% 79.9% 2,887,822 2,883,506
70% 69.9% 2,526,844 2,522,207
60% 59.9% 2,165,866 2,160,910
50% 50.1% 1,804,889 1,807,266
40% 40.0% 1,443,911 1,445,003
30% 30.0% 1,082,933 1,081,882
20% 20.0% 721,955 721,683
10% 10.0% 360,978 361,250
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Bobby-Blade6' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,556,015
Calibration 2     3,548,031
Calibration 3     3,566,015
ssj_ops@calibrated=3,557,023
100% 99.9% 3,557,023 3,553,431
90% 90.9% 3,201,321 3,232,062
80% 79.8% 2,845,618 2,839,026
70% 69.9% 2,489,916 2,487,371
60% 60.0% 2,134,214 2,135,270
50% 50.2% 1,778,512 1,784,074
40% 40.1% 1,422,809 1,425,420
30% 30.0% 1,067,107 1,067,689
20% 19.9% 711,405 708,454
10% 10.0% 355,702 356,524
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Bobby-Blade7' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,558,866
Calibration 2     3,543,304
Calibration 3     3,551,956
ssj_ops@calibrated=3,547,630
100% 100.1% 3,547,630 3,552,226
90% 90.9% 3,192,867 3,224,696
80% 79.9% 2,838,104 2,836,065
70% 70.1% 2,483,341 2,487,278
60% 60.0% 2,128,578 2,128,947
50% 50.0% 1,773,815 1,774,765
40% 39.9% 1,419,052 1,415,765
30% 30.0% 1,064,289 1,063,181
20% 20.0% 709,526 708,551
10% 10.0% 354,763 356,315
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Bobby-Blade8' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,596,524
Calibration 2     3,569,460
Calibration 3     3,585,995
ssj_ops@calibrated=3,577,727
100% 99.9% 3,577,727 3,574,388
90% 91.0% 3,219,955 3,254,510
80% 79.9% 2,862,182 2,858,532
70% 69.9% 2,504,409 2,501,015
60% 60.0% 2,146,636 2,144,936
50% 50.2% 1,788,864 1,794,440
40% 40.0% 1,431,091 1,431,738
30% 30.0% 1,073,318 1,074,293
20% 20.0% 715,545 716,465
10% 9.9% 357,773 354,927
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Bobby-Blade9' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,590,198
Calibration 2     3,605,014
Calibration 3     3,574,145
ssj_ops@calibrated=3,589,580
100% 99.3% 3,589,580 3,562,742
90% 91.0% 3,230,622 3,265,442
80% 80.0% 2,871,664 2,872,760
70% 70.0% 2,512,706 2,513,640
60% 59.9% 2,153,748 2,151,512
50% 50.0% 1,794,790 1,796,544
40% 40.1% 1,435,832 1,440,631
30% 30.0% 1,076,874 1,078,026
20% 20.1% 717,916 721,121
10% 10.0% 358,958 358,624
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
