SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module			ssj_ops@100% = 46,012,174 ssj_ops@100% per Host = 5,751,522 ssj_ops@100% per JVM = 1,437,880
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 26, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	May 8, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			46,192,906
Calibration 2			46,107,333
Calibration 3			46,160,133
ssj_ops@calibrated=46,133,733
100%	99.7%	46,133,733	46,012,174
90%	90.0%	41,520,360	41,519,559
80%	80.0%	36,906,986	36,907,093
70%	70.0%	32,293,613	32,289,434
60%	60.0%	27,680,240	27,684,410
50%	50.0%	23,066,866	23,062,173
40%	40.1%	18,453,493	18,482,234
30%	30.0%	13,840,120	13,840,808
20%	20.0%	9,226,747	9,246,866
10%	10.0%	4,613,373	4,613,318
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
8	16	448	896	1,536	8	32

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	HPE Synergy 12000 Frame
Form Factor:	12U
Power Supply Quantity and Rating (W):	4 x 2650
Power Supply Details:	HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1 x H3C S5820X-28S (JD373A)
Network Switch Details:	10 Gb Fibre 24 ports
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	1 x HPE Synergy 10/40Gb Pass Thru Module (799330-B21), 1 x Synergy Composer (804353-B21), 1 x Synergy Frame Link Module (804942-B21)
Comment:	Network switch not measured for power

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	8
Comment:	SUT

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 480 Gen10 Compute Module
Form Factor:	7U
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16384 MB
Memory Details:	12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	H/S: Standard

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn21000m -Xms24000m -Xmx24000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	4
JVM Initial Heap (MB):	24000
JVM Maximum Heap (MB):	24000
JVM Address Bits:	64
Boot Firmware Version:	I42 v2.00 (02/02/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

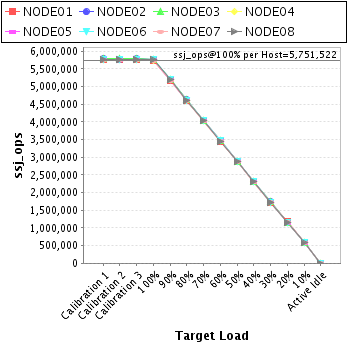

Host Instance Summary

Host	ssj_ops@100%
NODE01	5,737,791
NODE02	5,769,564
NODE03	5,772,636
NODE04	5,745,707
NODE05	5,749,256
NODE06	5,752,696
NODE07	5,731,526
NODE08	5,752,998
ssj_ops@100%	46,012,174
ssj_ops@100% per Host	5,751,522
ssj_ops@100% per JVM	1,437,880

Host 'NODE01' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,757,941
Calibration 2			5,757,912
Calibration 3			5,755,700
ssj_ops@calibrated=5,756,806
100%	99.7%	5,756,806	5,737,791
90%	90.1%	5,181,125	5,186,192
80%	80.0%	4,605,445	4,606,370
70%	70.0%	4,029,764	4,030,574
60%	60.1%	3,454,084	3,458,970
50%	49.9%	2,878,403	2,873,929
40%	40.1%	2,302,722	2,310,346
30%	30.0%	1,727,042	1,725,034
20%	20.3%	1,151,361	1,170,031
10%	10.0%	575,681	575,948
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE02' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,793,888
Calibration 2			5,778,833
Calibration 3			5,788,588
ssj_ops@calibrated=5,783,711
100%	99.8%	5,783,711	5,769,564
90%	90.0%	5,205,340	5,204,789
80%	80.0%	4,626,968	4,626,459
70%	70.0%	4,048,597	4,048,052
60%	60.0%	3,470,226	3,470,891
50%	49.9%	2,891,855	2,888,210
40%	40.0%	2,313,484	2,311,711
30%	30.0%	1,735,113	1,734,547
20%	20.0%	1,156,742	1,156,242
10%	10.0%	578,371	576,715
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE03' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,804,048
Calibration 2			5,785,295
Calibration 3			5,788,878
ssj_ops@calibrated=5,787,087
100%	99.8%	5,787,087	5,772,636
90%	89.9%	5,208,378	5,204,864
80%	80.0%	4,629,669	4,629,000
70%	70.1%	4,050,961	4,054,318
60%	59.9%	3,472,252	3,468,933
50%	49.9%	2,893,543	2,886,317
40%	40.0%	2,314,835	2,314,390
30%	30.1%	1,736,126	1,739,080
20%	20.0%	1,157,417	1,156,148
10%	10.0%	578,709	576,071
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE04' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,770,539
Calibration 2			5,762,156
Calibration 3			5,764,503
ssj_ops@calibrated=5,763,330
100%	99.7%	5,763,330	5,745,707
90%	90.0%	5,186,997	5,187,874
80%	80.0%	4,610,664	4,610,773
70%	69.9%	4,034,331	4,030,196
60%	60.1%	3,457,998	3,463,478
50%	50.0%	2,881,665	2,881,947
40%	40.1%	2,305,332	2,311,979
30%	30.0%	1,728,999	1,728,622
20%	20.0%	1,152,666	1,151,699
10%	10.0%	576,333	575,666
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE05' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,772,627
Calibration 2			5,754,767
Calibration 3			5,768,036
ssj_ops@calibrated=5,761,401
100%	99.8%	5,761,401	5,749,256
90%	89.9%	5,185,261	5,181,791
80%	80.0%	4,609,121	4,610,218
70%	70.0%	4,032,981	4,033,201
60%	60.1%	3,456,841	3,461,552
50%	50.0%	2,880,701	2,882,167
40%	40.1%	2,304,561	2,310,021
30%	30.0%	1,728,420	1,727,698
20%	20.0%	1,152,280	1,153,508
10%	10.1%	576,140	579,314
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE06' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,775,620
Calibration 2			5,760,187
Calibration 3			5,775,169
ssj_ops@calibrated=5,767,678
100%	99.7%	5,767,678	5,752,696
90%	90.1%	5,190,910	5,196,883
80%	80.0%	4,614,143	4,613,351
70%	70.0%	4,037,375	4,035,106
60%	60.0%	3,460,607	3,462,677
50%	50.1%	2,883,839	2,888,465
40%	40.2%	2,307,071	2,315,904
30%	30.0%	1,730,303	1,730,282
20%	20.0%	1,153,536	1,152,439
10%	10.0%	576,768	577,860
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE07' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,747,111
Calibration 2			5,743,828
Calibration 3			5,750,546
ssj_ops@calibrated=5,747,187
100%	99.7%	5,747,187	5,731,526
90%	89.9%	5,172,468	5,166,536
80%	80.0%	4,597,750	4,597,446
70%	70.0%	4,023,031	4,023,758
60%	60.0%	3,448,312	3,446,081
50%	50.1%	2,873,594	2,876,724
40%	40.0%	2,298,875	2,298,461
30%	30.0%	1,724,156	1,726,363
20%	20.1%	1,149,437	1,153,726
10%	10.0%	574,719	574,357
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE08' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,771,132
Calibration 2			5,764,353
Calibration 3			5,768,713
ssj_ops@calibrated=5,766,533
100%	99.8%	5,766,533	5,752,998
90%	90.0%	5,189,880	5,190,631
80%	80.0%	4,613,226	4,613,476
70%	70.0%	4,036,573	4,034,229
60%	59.9%	3,459,920	3,451,828
50%	50.0%	2,883,267	2,884,414
40%	40.0%	2,306,613	2,309,422
30%	30.0%	1,729,960	1,729,182
20%	20.0%	1,153,307	1,153,074
10%	10.0%	576,653	577,388
Active Idle		0	0

See the Host Performance Report for additional details.
