XSLAB V-Raptor SQ ssj_ops@100% = 1,465,360
ssj_ops@100% per Host = 91,585
ssj_ops@100% per JVM = 22,896
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Sep 16, 2021
Hardware Availability: Jul-2021 Software Availability: Sep-2018 Publication: Dec 9, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,456,414
Calibration 2     1,487,635
Calibration 3     1,483,074
ssj_ops@calibrated=1,485,354
100% 98.7% 1,485,354 1,465,360
90% 89.9% 1,336,819 1,335,546
80% 80.1% 1,188,284 1,189,197
70% 70.1% 1,039,748 1,041,353
60% 59.9% 891,213 889,985
50% 50.1% 742,677 744,069
40% 39.9% 594,142 591,985
30% 30.2% 445,606 448,056
20% 20.0% 297,071 297,782
10% 10.1% 148,535 150,557
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
16 384 384 384 256 16 64
System Under Test
Shared Hardware
Shared Hardware
Enclosure: 19 inch Rackmount 2U Server System
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: FSP800-50ERS 2U 800W
Network Switch: uSafe3010-24T
Network Switch Details: 24 Port 10/100/1000 Base-T, 4 Uplink port 1G TX/SFP Combo
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: V-Raptor SQ
# of Identical Nodes: 16
Comment: None
Hardware per Node
Hardware Vendor: XSLAB
Model: V-Raptor SQ
Form Factor: 2U
CPU Name: ARM Cortex-A53(1GHz) 24 Cores: SOCIONEXT SC2A11 ARM SoC
CPU Characteristics: 24 Core, 1GHz
CPU Frequency (MHz): 1000
CPU(s) Enabled: 24 cores, 24 chips, 1 core/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 24 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per dual core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 1 x 16 GB
Memory Details: 1 x 16 GB DDR4 ECC SODIMM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: M.2 2280 SATA SSD 250GB
Disk Controller: ASM1062 Serial ATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with 2ch IPSec Network Offload Engine
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled
Operating System (OS): Ubuntu 18.04.5 LTS (Bionic Beaver)
OS Version: Kernel 4.15.0-144-generic
Filesystem: ext4
JVM Vendor: Oracle Corporation
JVM Version: java version "11.0.11" 2021-04-20 LTS;Java(TM) SE Runtime Environment 18.9 (build 11.0.11+9-LTS-194);Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -Djava.awt.headless=true -Xms400m -Xmx400m -Djava.net.preferIPv4Stack=true
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 10 }
JVM Instances: 4
JVM Initial Heap (MB): 400
JVM Maximum Heap (MB): 400
JVM Address Bits: 64
Boot Firmware Version: None
Management Firmware Version: V1.0.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
node17 91,364
node18 88,919
node19 89,878
node20 91,146
node21 90,053
node22 92,676
node23 90,603
node24 91,452
node25 90,261
node26 92,758
node27 92,027
node28 92,002
node29 92,492
node30 92,449
node31 93,252
node32 94,028
ssj_ops@100% 1,465,360
ssj_ops@100% per Host 91,585
ssj_ops@100% per JVM 22,896

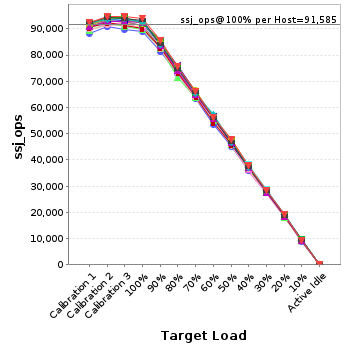

Graph of per-host results
Host 'node17' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,925
Calibration 2     93,092
Calibration 3     92,278
ssj_ops@calibrated=92,685
100% 98.6% 92,685 91,364
90% 88.9% 83,417 82,391
80% 80.7% 74,148 74,834
70% 70.8% 64,880 65,605
60% 60.5% 55,611 56,057
50% 50.5% 46,343 46,787
40% 40.3% 37,074 37,315
30% 30.5% 27,806 28,287
20% 19.9% 18,537 18,478
10% 10.3% 9,269 9,501
Active Idle   0 0
Graph of results
Host 'node18' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,334
Calibration 2     90,794
Calibration 3     89,794
ssj_ops@calibrated=90,294
100% 98.5% 90,294 88,919
90% 90.0% 81,265 81,299
80% 80.9% 72,235 73,031
70% 70.4% 63,206 63,574
60% 59.4% 54,176 53,628
50% 49.9% 45,147 45,085
40% 39.9% 36,118 36,056
30% 31.0% 27,088 28,001
20% 20.5% 18,059 18,517
10% 9.7% 9,029 8,734
Active Idle   0 0
Graph of results
Host 'node19' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,493
Calibration 2     91,901
Calibration 3     90,767
ssj_ops@calibrated=91,334
100% 98.4% 91,334 89,878
90% 90.2% 82,200 82,366
80% 78.1% 73,067 71,304
70% 69.7% 63,934 63,615
60% 60.3% 54,800 55,115
50% 50.1% 45,667 45,730
40% 40.2% 36,534 36,688
30% 30.0% 27,400 27,428
20% 19.9% 18,267 18,167
10% 10.3% 9,133 9,388
Active Idle   0 0
Graph of results
Host 'node20' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,783
Calibration 2     91,781
Calibration 3     92,168
ssj_ops@calibrated=91,975
100% 99.1% 91,975 91,146
90% 90.1% 82,777 82,824
80% 80.3% 73,580 73,844
70% 70.5% 64,382 64,833
60% 59.7% 55,185 54,919
50% 49.6% 45,987 45,637
40% 39.7% 36,790 36,493
30% 30.5% 27,592 28,090
20% 20.2% 18,395 18,549
10% 10.2% 9,197 9,388
Active Idle   0 0
Graph of results
Host 'node21' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,838
Calibration 2     91,624
Calibration 3     92,124
ssj_ops@calibrated=91,874
100% 98.0% 91,874 90,053
90% 90.2% 82,687 82,905
80% 80.6% 73,499 74,055
70% 70.2% 64,312 64,463
60% 60.4% 55,124 55,473
50% 50.1% 45,937 46,061
40% 38.9% 36,750 35,702
30% 29.6% 27,562 27,200
20% 20.2% 18,375 18,568
10% 10.2% 9,187 9,368
Active Idle   0 0
Graph of results

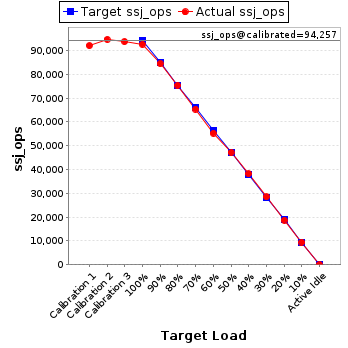

Host 'node22' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,101
Calibration 2     94,733
Calibration 3     93,782
ssj_ops@calibrated=94,257
100% 98.3% 94,257 92,676
90% 89.6% 84,832 84,479
80% 80.0% 75,406 75,415
70% 69.4% 65,980 65,412
60% 58.7% 56,554 55,292
50% 50.1% 47,129 47,217
40% 40.5% 37,703 38,213
30% 30.3% 28,277 28,541
20% 19.9% 18,851 18,757
10% 10.1% 9,426 9,515
Active Idle   0 0
Graph of results

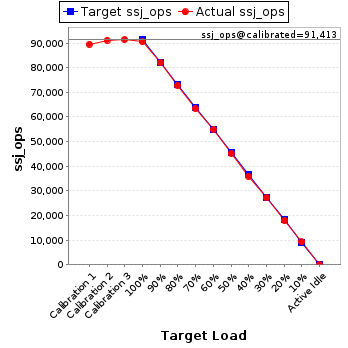

Host 'node23' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,640
Calibration 2     91,250
Calibration 3     91,576
ssj_ops@calibrated=91,413
100% 99.1% 91,413 90,603
90% 89.8% 82,272 82,077
80% 79.7% 73,130 72,828
70% 69.4% 63,989 63,461
60% 60.2% 54,848 55,072
50% 49.6% 45,706 45,303
40% 39.4% 36,565 36,012
30% 29.7% 27,424 27,123
20% 19.8% 18,283 18,129
10% 10.2% 9,141 9,281
Active Idle   0 0
Graph of results
Host 'node24' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,840
Calibration 2     92,927
Calibration 3     92,746
ssj_ops@calibrated=92,836
100% 98.5% 92,836 91,452
90% 89.3% 83,553 82,914
80% 81.1% 74,269 75,302
70% 70.4% 64,985 65,340
60% 60.7% 55,702 56,335
50% 50.6% 46,418 46,974
40% 39.6% 37,135 36,748
30% 31.1% 27,851 28,844
20% 20.0% 18,567 18,559
10% 10.0% 9,284 9,281
Active Idle   0 0
Graph of results
Host 'node25' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,430
Calibration 2     92,294
Calibration 3     91,378
ssj_ops@calibrated=91,836
100% 98.3% 91,836 90,261
90% 90.2% 82,652 82,825
80% 79.7% 73,469 73,189
70% 69.9% 64,285 64,227
60% 59.3% 55,101 54,433
50% 49.8% 45,918 45,717
40% 40.5% 36,734 37,176
30% 30.2% 27,551 27,747
20% 20.3% 18,367 18,651
10% 10.4% 9,184 9,573
Active Idle   0 0
Graph of results
Host 'node26' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,563
Calibration 2     93,582
Calibration 3     93,247
ssj_ops@calibrated=93,414
100% 99.3% 93,414 92,758
90% 90.3% 84,073 84,356
80% 81.3% 74,731 75,908
70% 70.8% 65,390 66,105
60% 60.7% 56,049 56,658
50% 49.6% 46,707 46,317
40% 39.9% 37,366 37,258
30% 30.3% 28,024 28,349
20% 20.3% 18,683 19,000
10% 10.1% 9,341 9,391
Active Idle   0 0
Graph of results
Host 'node27' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,207
Calibration 2     94,315
Calibration 3     94,168
ssj_ops@calibrated=94,241
100% 97.7% 94,241 92,027
90% 90.6% 84,817 85,396
80% 79.6% 75,393 74,992
70% 69.8% 65,969 65,822
60% 59.2% 56,545 55,763
50% 50.4% 47,121 47,515
40% 39.9% 37,697 37,579
30% 29.6% 28,272 27,869
20% 20.0% 18,848 18,892
10% 10.2% 9,424 9,603
Active Idle   0 0
Graph of results

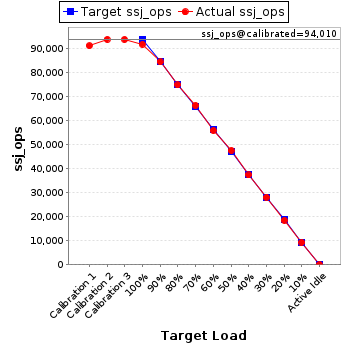

Host 'node28' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,327
Calibration 2     94,028
Calibration 3     93,992
ssj_ops@calibrated=94,010
100% 97.9% 94,010 92,002
90% 90.0% 84,609 84,600
80% 79.8% 75,208 74,995
70% 70.8% 65,807 66,519
60% 59.6% 56,406 56,005
50% 50.7% 47,005 47,692
40% 39.8% 37,604 37,404
30% 30.0% 28,203 28,184
20% 19.7% 18,802 18,550
10% 10.0% 9,401 9,397
Active Idle   0 0
Graph of results

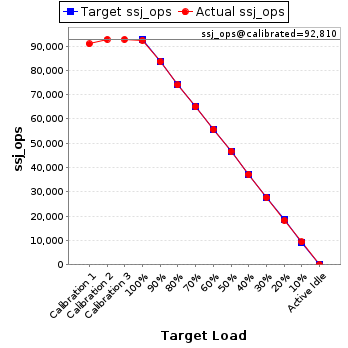

Host 'node29' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,894
Calibration 2     92,827
Calibration 3     92,794
ssj_ops@calibrated=92,810
100% 99.7% 92,810 92,492
90% 90.1% 83,529 83,642
80% 79.7% 74,248 74,009
70% 70.2% 64,967 65,115
60% 60.1% 55,686 55,749
50% 50.4% 46,405 46,781
40% 40.1% 37,124 37,222
30% 29.8% 27,843 27,668
20% 19.7% 18,562 18,280
10% 10.1% 9,281 9,376
Active Idle   0 0
Graph of results

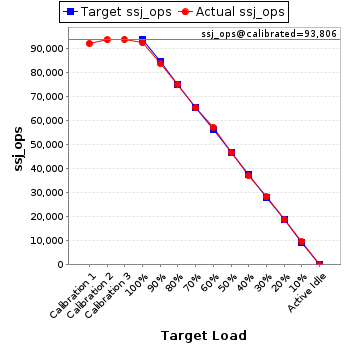

Host 'node30' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,258
Calibration 2     93,710
Calibration 3     93,902
ssj_ops@calibrated=93,806
100% 98.6% 93,806 92,449
90% 89.4% 84,425 83,848
80% 80.2% 75,045 75,222
70% 69.6% 65,664 65,294
60% 61.1% 56,284 57,308
50% 49.9% 46,903 46,771
40% 39.6% 37,522 37,182
30% 30.1% 28,142 28,213
20% 20.2% 18,761 18,983
10% 10.4% 9,381 9,766
Active Idle   0 0
Graph of results
Host 'node31' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,270
Calibration 2     94,132
Calibration 3     93,778
ssj_ops@calibrated=93,955
100% 99.3% 93,955 93,252
90% 89.6% 84,560 84,201
80% 79.5% 75,164 74,682
70% 69.9% 65,769 65,703
60% 59.5% 56,373 55,924
50% 49.7% 46,978 46,733
40% 39.6% 37,582 37,226
30% 29.9% 28,187 28,068
20% 19.8% 18,791 18,605
10% 10.2% 9,396 9,603
Active Idle   0 0
Graph of results

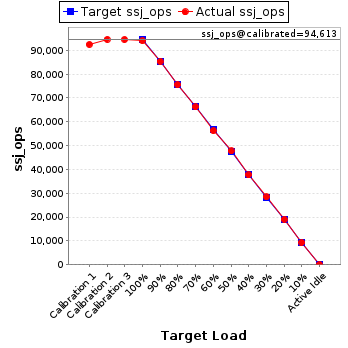

Host 'node32' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,510
Calibration 2     94,645
Calibration 3     94,581
ssj_ops@calibrated=94,613
100% 99.4% 94,613 94,028
90% 90.3% 85,152 85,423
80% 79.9% 75,691 75,585
70% 70.0% 66,229 66,266
60% 59.5% 56,768 56,253
50% 50.5% 47,307 47,749
40% 39.9% 37,845 37,709
30% 30.1% 28,384 28,445
20% 20.2% 18,923 19,096
10% 9.9% 9,461 9,393
Active Idle   0 0
Graph of results
